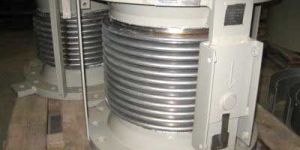

Hinged Bellows, either Axial or Universal type, are designed to absorb angular rotation in one plane only by the use of a pair of pins through hinge plates attached to the expansion bellows.Hinged Expansion Bellows should be used in sets of 2 or 3 to function properly. Hinged Bellows are normally prevented by their design from deflecting axially, either in extension or compression. The hinge mechanism is usually designed to accept full pressure thrust and also shear loads such as from the weight of the adjacent piping, can be accepted by these type of expansion joints thereby doing away with provision of additional supports and anchors.

A single axial bellow is restricted using hinges & pins arrangement for a change in direction of piping at an angle.

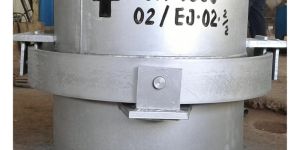

Hinged Expansion Joints have a single bellows and have their length restrained by the addition of hinge mechanism which is strong enough to accept the pressure generated thrust but will allow angular movement in a single plane. Slotted Hinge Expansion Joints are a variant of the above "Hinged" type, in that while providing for angular movements, some axial movement can be accepted because the hinge pin passes through slots in the hinge plates. When the axial movements is occurring the expansion joint is incapable of accepting the pressure thrust. The hinge structure can be designed to accept the full pressure thrust when the pin is at the limit of its travel within the slot
