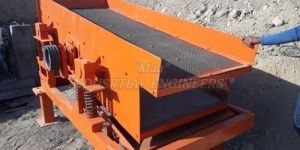

Linear Motion Screen Dealers in Vadodara

• Voltage: 220 - 440 V
• Driven Type: Electric
• Country of Origin: Made in India
• Type Of Machine: Linear
• Transmission Structure: Tubular Frame With Coiled Spring
• Body Material: Mild Steel
• Usage/Application: fine screening, powder etc
• Capacity: Up to 400 TPH
• Automation Grade: Semi-Automatic
• Brand: "Maa"
• I Deal In: New Only
• Surface Treatment: Powder Coated
• Frequency: 50 Hz

• Widths: 1000 mm to 3800 mm, 400 mm to 1250 mm
• Lengths: 2500 mm to 10000 mm, 1250 mm to 3000 mm

Circular Motion Vibrating Screens have a limitation on Area of Deck to 14 to 18 square meters due to excessive load on the Bearings. Whereas Linear Motion Vibrating Screens can be a better solution as they can offer a larger area for screening. Screens up to 40 square meters of Deck Area can be available in Single or Double Deck construction.

Linear Motion Screens are operated either by a mechanical exciter or two unbalance motors. In both cases, rotation in opposite directions creates linear vibration. Linear Motion Vibrating Screens are very high performance machines, in terms of capacity and efficiency. They have a low inclination which varies between 0 to 15. The drive is a combination of high amplitude and low frequency of vibration. TWO UNBALANCE MOTORS These are arranged as a double drive which produces linear vibrations. They are mainlyused to medium sized vibratory screens. Due to linear vibrations, these screens have amuch lower downward inclination than those with shaft drivers. In special cases the screens can even run without any inclination or with a slight incline.

• Widths: 1000 mm to 3800 mm
• Lengths: 2500 mm to 10000 mm

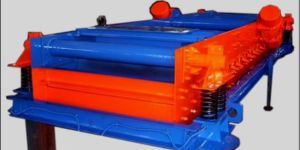

Linear Motion Vibrating Screens Circular Motion Vibrating Screens have a limitation on Area of Deck to 14 to 18 square meters due to excessive load on the Bearings.Whereas Linear Motion Vibrating Screens can be a better solution as they can offer a larger area for screening.  Screens up to 40 square meters of Deck Area can be available in Single or Double Deck construction. Imbalanced Motor Construction:   Widths: 400 mm to 1250 mm  Lengths: 1250 mm to 3000 mm Process Application : Separation/Classification/Sizing/Draining & Dewatering Industrial Application : Iron Ore Beneficiation Plants/Iron Ore Washing Plants/Sand Washing Plant
