Multiple Spring Seal Dealers in Vadodara

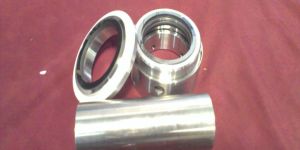

We are engaged in offering Multi Spring Mechanical Seal that is developed for Universal High pressure application. Torque Transmission from Retainer Shell to Dynamic Ring is done through Drive lugs. The compact design of Multi Spring Mechanical Seal makes them apt to be used in all types of Centrifugal Pumps. All Components of Multi Spring Mechanical Seal are held together by a Snap Ring, which helps in Easier Installation & Removal. Raw Material Used Face Materials : (Dynamic Ring & Stationary Ring )Carbon, Ceramic (99.5%)Silicon Carbide, Tungsten Carbide, Chrome Cast Steel, which are suitable for fluid.Secondary SealU81 & B81 : Viton, EPDM, Silicon, Aflas, EPR, Kalrez, TCV.U86 & B86 : GFT, PTFE, FEP, Grafoil.Hardware : SS 316, SS 304, Hast - C, Monel, Alloy -20. Features Independent of direction of rotationDouble & Single ActingInside Mounted Unbalanced Applications Light Hydrocarbon, Dirty Water & Slurry Media. PetrochemicalsPetroleum RefineryGeneral Chemicals Our Multi Spring Mechanical Seal Is Serving Chemicals, dyes & intermediates Organic/inorganic chemicalsOil extraction and waste oil refineries Hydrocarbons / volatile liquidsBulk drugs & pharmaceuticalsDyes & intermediates Effluent treatment plants Water treatment & distribution systemHeating & air conditioning plantsThermic fluid / hot oilCooling towers corrosive / abrasive liquids Sizes Available Shaft Diameter : 12 mm to 100 mm (0.5" to 4.0")Pressure : 10 Bar (kg/cm 2 ) & Balance upto 35 bar (kg/cm2 ) Temperature : -60oc To 200ocShaft Speed : Upto 6000 RPM According to Shaft Size & Pressure

• Shaft Diameter(dl): 18mm to 100mm
• Pressure(p): 10 bar (max)
• Temperature(t): -200C to 2200C
• Velocity(v): 20 m/sec
• Seal Faces: Carbon, Ceramic, SiC, Tung. Carbide
• Metal Parts: SS316, SS304, Hastelloy-C, Alloy 20
• O-rings: Elastomers (VT- 9) PTFE Wedge (VT – 9W)

Type VT- 9 / VT – 9W are multi spring, pusher type unbalanced seals used for universal applications. The seals are compact in design suiting all types of rotating equipments, pumps and mixers. Drive lugs in the retainer will provide torque transmission and reduce slippage on shaft and sleeve. A snap ring holds all components together, helping in easy installation. The parts are interchangeable, VT- 9 can be converted toVT – 9W by just changing the seal ring and the secondary member. SEAL CHARACTERISTICS Single Seal unbalanced Independent of directions of rotation APPLICATION General Chemicals Petrochemicals · Refineries Light hydrocarbons, Water

We offer Multi Spring Seals that are available in different variants to cater diverse industrial segments. We have developed a huge client base owing to the quality and durability of our Multi Spring Seals. Designed specially by experts, Multi Spring Seals, offered by us, allow user to install seal in very less time. Our Multi Spring Seals are corrosion resistant and have long life.

Multi Spring O-Ring Seal, Elastomer Bellow Seal

Multi Spring Seals, Metal Rubber Seal, non metallic pumps
