Navkalp Engineering Vadodara, Gujarat

The Trisection plates grip behind the Inner and Outer Rings of the Bearing and helps extract them both simultaneously preventing the Inner ring to get stuck on the shaft.    Prevents bearing damage and minimizes the force required for dismounting.   Can be used with any 3‐Jaw Puller.

Color : Black

Application : Industrial

Feature : High Quality, Corrosion Resistance

Country of Origin : India

Brand Name : Powerram

While installing rotating equipment, Shims play a crucial role in accurately positioning the equipment during shaft alignment.   Lack of shim of proper size and thickness leads to improper alignment. This in turn causes vibration and ultimately leads to unplanned breakdowns and enormous downtime expenses. Flat, burr‐free shims make the job of alignmenT accurate and reliable. Easy to fit and remove. Made up of corrosion resistant Stainless Steel (SS 304), allowing re‐use. Round edged to avoid cuts. Clearly marked thickness on each shim for quick identification. Quick and safe insertion and removal of shim using Tab Hole. Saves a lot of time, labor and money wasted by hand cut shims. Accurate alignment improves equipment performance and hence it’s reliability.

Material : Stainless Steel SS304

Finishing : Polished

Application : Industrial

Feature : Round Edged,Flat,Burr Free,With Tab Hole And Thickness Marking

Thickness : 0.05,0.1,0.2,0.3,0.4,0.5,0.7,1,2,3,4,5 Mm

Country of Origin : Made in India

Shaft Misalignment causes vibration, failure of bearings, seals, etc and equipment damage.   Shaft Alignment Kit is used for Accurately Aligning the Shafts of Pump and Motor. It consists of an Aluminium vee Block that can be clamped on the Hub of the coupling by wing nuts. The kit has two precision spirit levels in the vee block to get accurate indexing of 90°, 180°, 270° and 360°. Suitable extension pins, dial holder pins, clamps are provided to take care of different spacer lengths between couplings. There is a facility of using two Dial Gauges, one for measuring Radial misalignment and other for Axial.

Country of Origin : India

Brand Name : Navkalp

Features: Easy to convert, 2‐Arm or 3‐Arm Self-Centering Hydraulic Pullers. Self‐centering jaws for Quick and Firm Grip. Self‐contained Hydraulic Pump and Puller Body with Integral Safety Valve.   360° Rotary Socket. The extension rods can be used for extra reach when necessary.

Country of Origin : India

Application : Industrial

Type : Hydraulic Puller with Self-Centering Jaws

Brand Name : Powerram

Features: Easy to convert, 2‐Arm or 3‐Arm Puller. Self‐contained Hydraulic Pump and Puller Body with Integral Safety Valve.   360° Rotary Socket. Spring loaded live centering nut for easy job (removable). Four stages of foldable and removable handle which saves the handle force during operation. The extension rods can be used for extra reach when necessary

Country of Origin : India

Application : Industrial

Type : Standard Type

Brand Name : Powerram

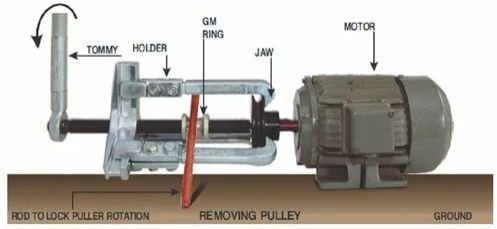

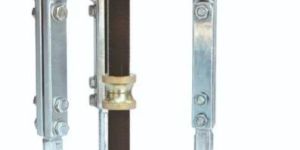

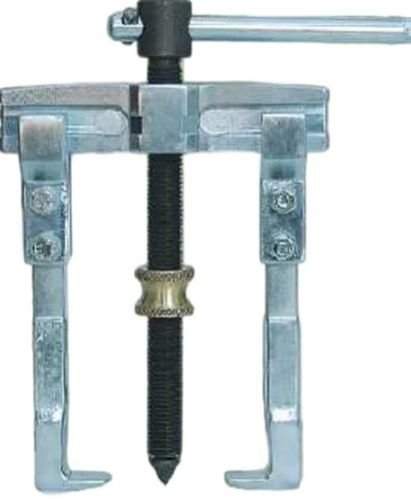

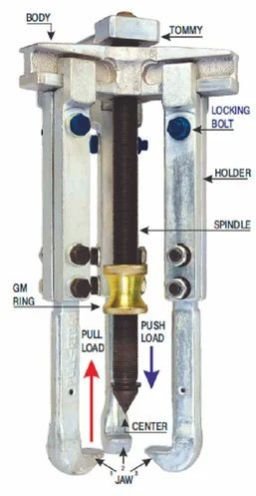

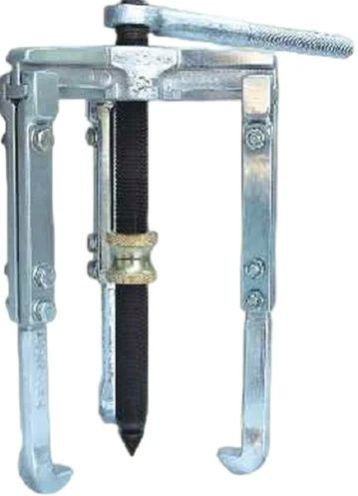

Heavy Duty Mechanical Pullers to dismount any machine element including bearings, pulleys, couplings and gears without damaging them.   Features: Jaws remain coplanar over the entire width thus ensuring Full Grip over the machine element requiring extraction. Facility of locking puller jaws to avoid any Slippage while extracting Gunmetal ring provided to eliminate damage to spindle Specially designed Tommy to apply extra torque Rotating center to reduce damage to shaft All parts made from high grade alloy steel, duly hardened & precision ground to provide Heavy Load carrying capacity, Excellent Reliability & long life.   Advantages of Modular Design:- Optional Accessories like Chisel type Jaws, to extract Bearings having very low backside clearance, extra holder to increase reach, Fan jaws to remove Motor Fans, can be easily fixed & removed. THIS MAKES THE PRODUCT VERSATILE. Any individual component can be individually replaced, whereas in many other pullers no replacement of individual components is possible.

Country of Origin : India

Brand Name : Navkalp

Details: Cuts Precision gaskets from 2”- 42”diameters within tight tolerances. Compatible with Non-Asbestos & Wire jointing, Rubber, Cork, Teflon, Nylon upto 3.5mm thk. Cuts higher thicknesses upto 5.0mm in Rubber, Neoprene, Cork & other soft materials. Cuts circulars in Brass, Copper & Stainless Steel Shims from 24 SWG upwards without any tool changes. Light weight, Compact and Portable, assembles on any work site in minutes. Minimum wear parts ensures years of trouble free service. Cutting blade manufactured from High Speed Steel ensures easy penetration into the toughest gasketing material including wire joint sheets & Metallic shims. Practically Maintenance Free. Ease of operation and User Friendly - Pictorial manual with every machine describes cutting operation in easy steps. Even semi-skilled people can operate the machine with minimal training. Complete range of accessories with every machine ensures immediate start-up. Reduces Wastage, smaller diameter gaskets can be fabricated from left over circles. Machine and standard accessories in every box: Gasket Cutting Machine with Calibrated Bar & Circular Cutter Blade to cut Gaskets from 2”- 22”O.D. 1 Pc. 10.0mm H.S.S. Drill bit to drill centre hole to mount gasket on machine. 10 Pcs. Hole Saw Cutters set. Size: 12 – 45mm. Cuts Internal diameters below 50mm, bolt and stud holes for mounting on flanges. Steel Turntable to mount rough gasket. Cutter Removal Key (for replacing worn cutter). Cutter blade Alignment Spanner (Wrench) – aligns Cutting Blade on top shaft near crank handle to groove on bottom blade if mis-aligned due to improper operation or post cutting of hard materials. 2 Pcs. Stainless Steel Bolts for mounting machine on work table. DIN / ANSI / JIS Flange reference tables allows user to refer flange measurements on-site for cutting gaskets. Laminated to protect from grease and dirt. Operation Manual - Laminated to protect from grease and dirt. Optional accessories available: Optional Calibrated Bar to cut gasket O.D. from 22”- 42”O.D. P/No. OCCB 2242 Extra Circular Cutter Blade (generally recommended to order 1 or 2 spare cutters or more depending on usage). P/No. SCB 2222 Electrical drilling machine 10mm to use for Holesaw cutter.

Brand Name : Perfect Cut

Model Number : GC-42

Usage : Industrial

Material : Cast Iron

Country of Origin : Made in India

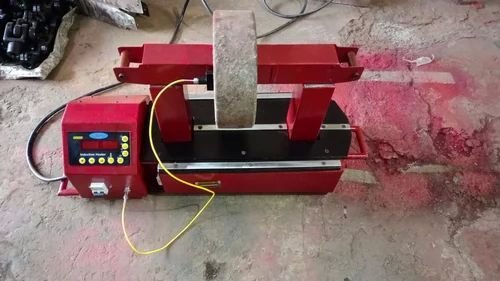

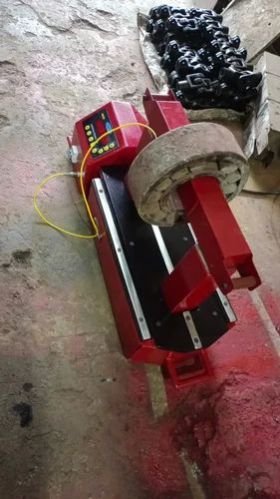

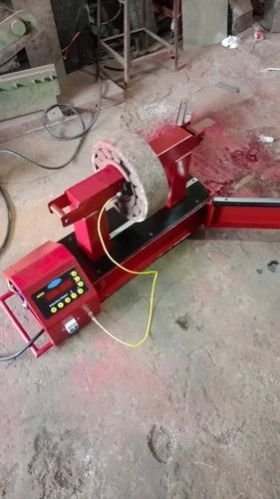

The best way to avoid unwanted stresses when assembling interference-fit parts is to heat the outer part just enough to produce a temporary clearance.   Induction heaters allow this to be done precisely, quickly and efficiently.Bearings having an ID > 50 mm must be hot mounted as the interference between the shaft and the bearings is more. Cold mounting or use of methods such as open flame, oil bath or hot oven must be avoided as they are inefficient, less controlled and do more harm than good to the bearings.Induction Heater is an excellent method for heating and installing rolling bearingsand ring-shaped metal parts such as gearwheels, sprockets, sleeves, etc with both speed and care.   Features: Automatic Demagnetisation Compact & Light Weight Thermal Overheating Protection Can Be Operated in Time Mode or Temperature Mode Intelligent Micro-Controller Based Electronics Four Step Power Setting

Condition : New

Country of Origin : Made in India

Mounting bearings by hammering or brute force dents their inner/outer races as well as alters the set clearances. Bearing Fitting Tool Kit is used for quick and precision mounting of bearings, while minimising the risk the bearing damage. It comprises of 36 Impact rings, 3 Impact Sleeves and 1 Nylon Mallet all assembled in a suitable carrying steel case.   The Aluminium Alloy Impact Sleeves and Ultra High Molecular Weight Polyethylene (UHMW-Pe) Impact Rings are made to fit into a diverse set of combinations. The impact rings and sleeves are marked for clear visual identification with a selection chart in each kit to identify easy mounting.   With the above assembly one can mount over 200 different bearings from 10mm to 60mm ID with precision and accuracy. Each sleeve can accommodate about 200 mm length projecting shaft.   Benefits: Availing longer life of bearings resulting in huge savings. Ensuring accurate alignment and even distribution of mounting forces. Avoiding sparking as well as dirt being injected into the bearings. Quick and trouble-free mounting with ease.

Type : Hand Tool Kit

Application : Industrial

Brand Name : Navkalp

Model Number : BFTK-36

Material : Ultra High Molecular Weight Polyethylene (UHMW-Pe) Impact Rings and Aluminium Alloy Impact Sleeves

Country of Origin : Made in India
