Orifice Plate Dealers in Vadodara

• Size: 3/4 inch
• Brand Name: Shree Ambica
• Color: Silver
• Country of Origin: Made in India
• Usage/Application: Chemical Fertilizer Pipe
• Finishing: Polished
• SKU: 17248

• Line Size: 15NB to 600 NB

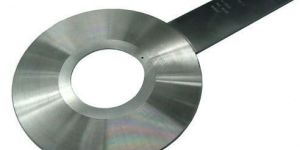

Orifice plate, The Plate is machined from SS 304SS 316Monel. Flanges can also be of different material like ASTM A 105, A 182, SS 304, SS 316 and Monel. The Flange rating may be 150#300#600# or more as per customer's and process requirement.

The most common primary flow element is the concentric orifice plate, often called the “sharp-edged” orifice plate. Its main advantages are: low cost, accuracy, ease of installation, variety of construction material and quick delivery. Much test data has been compiled about orifice plates and, with the necessary information, an exacting design can be made providing for excellent metering accuracy. Engineered for each application, Meriam Orifice plates are precision bored to exact dimensions with a sharp upstream edge to ensure accuracy. Orifice information is stamped on the unique handle. This handle is designed to facilitate storage of the plate without damage to the orifice bore. Pair a Meriam orifice plate with an orifice flange to provide a convenient, accurate method for installing orifice plates.

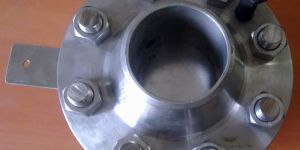

•diameter : as per ansi-b- 16.5. •pressure rating : 300, 600, 900, 1500, 2500 lbs. Minimum flange thicness 1.5″ •material : 1.forged carbon steel as per astm-a- 105 for gr I & ii. 2.ss 304, 316, 316l as per aisi std. 3.ibr, alloy steel, others on special request •type : weld neck, raised face (wnrf) / slip on raised face (sorf) •pressure taps : 1/2″ npt – 2 nos on each flange at 180 degree apart. •stud : astm-a-193, gr. B7 •nut : astm-a-194, class 2h. •jack screw : 1 no. With each flange •gasket : as per application i.e. Asbestos, graphited asbestos or others
