Plug Valve Dealers in Vadodara

• Size: 1/2"
• Material: PTFE
• Color: Blue
• End Connection: Flanged
• Model Name/Number: PLPV-14F115
• Working Pressure: 175 Psi
• Media: Air, Water, Gas
• Standard: ASME B16.34

• Plug valve: Jacketed Plug valve

We are a credible Manufacturer, Exporter and Supplier of PFA-FEP Plug PFA-FEP Lined Valves in Gujarat, India. Our Lined Valves are fabricated under the supervision of experienced professionals in order to ensure the finest quality. The Lined Valves that we offer are highly appreciated due to their perfect finish and durability. We can make available Lined Valves in different sizes and with varied technical specifications.   Description : PFA/FEP Lining offers highest corrosion resistance. Minimum lining thickness of 3mm, lining locked in dove tail grooves, slots and Holes in the body & plug castings. This prevents Liner collapse in vacuum conditions and blow out in high pressure conditions. Lined Plug Valves have Body of Ductile Iron as per ASTM A 395 Gr-60-40-18 with Plug Made up of ASTM A 351 Gr CF8. Size: 25 NB TO 80 NB. Temperature: FEP –Max 180 Degree Celsius PFA Max: 200 Degree Celsius. Flange Connection: ANSI B 16.5. Face to Face: ANSI B 16.10 Spark Testing of PFA/FEP at 15 KVA. Hydro Test at 15 kg/cm2. Hydro Seat Test at 10 Kg/cm2. Leak Test as per API 598.

• Pressure: High Pressure

• End Connection: Forged – SW / Screwed & Cast – Flanged / RTJ – Flanged / BW Ends
• MOC: Forged – A105, F304, F304L, F316L, F11, F22, F5,F9
• Cast: WCB, CF8,CF8M, CF3, LCB, LCC, WC6, WC9, C-12
• Construction: PTFE Sleeved, Inverted Plug Pressure Balanced.
• Pressure Class: Forged – 800#, 1500#, 2500# & Cast – 150#, 300#, 600#, 900#, 1500#, 2500#
• Sizes: Forged - 0.5 Inch TO 2 Inch & Cast – 1.5 Inch TO 16 Inch
• Design Std.: Forged – BS5353 & CAST – BS 5353 / API 599

We offer following types of Lubricated Plug Valve, Non-Lubricated Plug Valve, Eccentric Plug Valve, Expanding Plug Valve, Sleeved Plug Valves, PTFE Lined Plug Valves, Double Block & Bleed Plug Valves.

• Country of Origin: India
• Type: Plug Valves
• Brand Name: Aira
• Material: Stainless Steel
• Usage: Water Fitting
• Temperature Pressure: Medium Temperature Pressure
• Number Of Way: 2way
• Condition: New
• Finishing: Polished
• Corrosion Resistance: Yes
• Warranty: 1 Year
• Media: Water
• Automatic Grade: Manual
• Overall Length: 20-30 Inch
• Valve Size: 1/2inch
• Specialities: Durable
• Packaging Type: Carton
• Operating Temperature: 180degree C
• Working Pressure: 10kg/sq.cm.
• End Connection: Screwed-BSP

• Type: M.S. Jacketed / Jacketed
• End Connection: Screwed End / Flanged End
• Body (MOC): Cast Iron / Cast Carbon Steel / Stainless Steel (SS304,SS316) / Bronze (Gun Metal)
• Pressure Rating: Class-150 / Class-300
• Pattern: Plug Type / Standard Pattern Type
• Flange Drill Standard: "Flanges as per ASME B 16.5 CL - 150 R.F. (Drilled) Serrated " / "Flanges as per ASME B 16.5 CL -
• Wrench Model: 2H / 3H / 4H / 5H / 7H / 8H / 10H
• Seat: Teflon

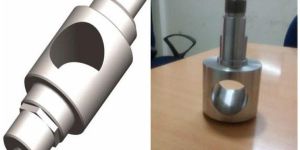

Plug valves are valves with cylindrical or conically tapered "plugs" which can be rotated inside the valve body to control flow through the valve. The plugs in plug valves have one or more hollow passageways going sideways through the plug, so that fluid can flow through the plug when the valve is open.

We are offering pneumatic plug valve features : - ideally suited to aggressive corrosive and potentially hazardous media - absolute tight shut off in case of sleeved plug valve - long life due to taper plug construction - longer life - type : lubricated, taper plug valve, pressure balanced, inverted plug valve, sleeved plug valve - material : cast iron, ductile iron, cast steel, cast stainless, alloy steel - end connection : screwed 800 to 2500 - design : as per bs : 5353 ( sleeved plug valve).

Plug Valve is a lubricated, straight pocket, quarter-turn plug valve rapid full open or close operation. The valve cavity is straight to ensure low torque operation and uniform sealing of the components at the full range of to pressures. WE offers a complete line of maintenance of high-pressure plug valves, ranging from 1" to 4" sizes and in pressure ratings up to 20,000 psi, for use in a variety of well service applications. We also manufacture the various parts of the plug valve.

The primary function of a safety valve is to protect property and life. Because a safety valve is often the last device to prevent catastrophic failure under pressure conditions, it is important that the valve works at all times i.e. it must be 100% reliable. Safety valves should be installed wherever the maximum allowable working pressure of a system or pressure containing vessel is likely to be exceeded, in particular under fault conditions due to the failure of another piece of equipment in the system.

• Material: Cast Iron
• Finishing: Coated
• Application: Gas Fitting, Oil Fitting
• Pressure: High
• Feature: Easy To Fit, Perfect Finish
• Weight: 10-15kg

UNP has a unique design Plug valves specifically to provide very low torque against PFA Lined Plugs available as standard worldwide. UNP offers following lining options instead of standard PFA or FEP Lined Plugs to achieve very low torques. Which is shown in table Below.

• PFA: ASTM A 216 GR. WCB
• FEP: ASTM A 351 GR. CF8
• PVDF: ASTM A 351 GR. CF8M
• ETFE: ASTM A 890 GR. 4A (CD3MN)
• ECTFE: HASTELLOY C 276 / C 22
• PPH: MONEL

PRODUCT FEATURES AND OPTIONS AVAILABLE UNP has a unique design Plug valves specifically to provide very low torque against PFA Lined Plugs available as standard worldwide. UNP offers following lining options instead of standard PFA or FEP Lined Plugs to achieve very low torques. Which is shown in table Below.

• Feature: Cost effective,Trouble free Performance and reliability,Additionally
• Size: 1/2" to 8"Body - SG Iron / 55316 (2 Pc) PTFE Lined Ball

Bestowed with vast knowledge of the domain, we are able to offer our clients a wide range of Stainless Steel Three Way Plug Valve. Being one of the renowned firms in the industry, we are involved in providing a high-quality array of Stainless Steel Three Way Plug Valve. Bestowed with vast knowledge of the domain, we are able to offer our clients a wide range of Stainless Steel Three Way Plug Valve.   The 3-Way Plug Valves offered by us are quarter-turn rotational motion valves that are used for manualcontrolling, starting, stopping and diverting the flow in the pipe lines. These valves use cylindricalor tapered plug that is rotated to 90° during the operation. These heavy duty plug valves are used inindustries like food, pharma, paper, textiles and many more. Technical specification: plug valve is a quarter turn manual valve that uses a tapered plug to permit or prevent straight -through flow through the body. The plug has a straight through opening. this opening is the same as the area of the inlet and outlet ports of the valve. • Material construction: aisi 304, aisi 316 & aisi 316l.” • Available sizes: from 1″ to 4″ (25mm to 100 mm) in 2 ways or 3 ways. • Way Plug Valve is used only as a Shutoff Valve • Way Plug Valve may be used as a divert to change the flow direction or as a Shutoff Valve. • Note:”This is a special feature of this valve as most Divert Valves cannot be used as Shutoff Valves. Plug Valves are available with 17-4PH Stainless Steel plugs, or rubber plugs. Features: • Durable, sanitary construction meeting 3A requirements • Body materials in 316SS • Plug material is metal (17-4PH) • Removable handle for easy service. Options: • Connections: I-Line, Q-Line, Bevel seat, or Butt weld • Connection sizes: 1″, 1½”, 2″, 2½”, or 3″ Applications: • Low pressure valves used mainly in dairy plants • To stop flow: use the 2-Way or the 3-Way • To divert flow: use the 3-Way only • Low pressure; 25 psi (1.7 bar) maximum • Low temperature; 100°F (38°C) maximum • COP (take-apart) cleaning

Manufacturer of Lined Ball Valves.Which are fabricated using ASA and DIN grade material such as CI, stainless steel and carbon steel. Our precision engineered valves come in application specific designs and are in high demand in the market because of their resistivity towards corrosive acids, alkalis and chemicals.

Pfa body liner is well anchored against the body by mean of machined and casted slots and the solid encapsulatedsolid pfa plug liner material insure a strong adhesion this makes our valve series so suitable for extreme service and vacuum conditions.
