PTFE Lined Reducer Dealers in Vadodara

• Size/ Diameter: 1 inch
• Fitting Type: Reducer
• Surface of Application: Chemical
• Country of Origin: Made in India
• Material: MS,SS
• Color: Blue, Grey
• Brand Name: JIH

Features: Concentric Reducer’s all flanges drilled to be ANSI B 16.5 Concentric Reducer’s all flanges will be 150# Concentric Reducer’s body will be C.I., W.C.B or S.S. 150#

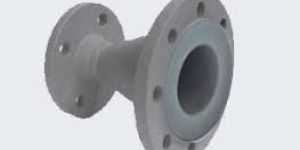

We are offering teflon lined reducer. Single step down reducer will be manufactured by ptfe liner as astm d 4895 and more then one step reducer will be manufactured in pfa as per astm d 3307 fep as per astm d 2116.

• Size: 15NB TO 300NB ( ¾” TO 12” )
• Length: As per Standard of B16.5 & ANSI B 16.42
• Liner: PFA    – Per Fluoro Alkoxy, ASTM D3307 FEP    – Fluorinated Ethylene Propylene,  ASTM D2116 HDPE –  As per Standard
• Body: As per ASTM A 234 Gr. WPB / DI A395 / SS304 / SS316 ( Seamless)
• Steel Housing: Carbon steel or Stainless Steel
• Flanges: ASTM A 105 (N) / IS 2062 / ASTM A351 GR CF8 & CF8M
• Drilling / Pressure: ASA 150# / 300# / DIN / Table – F
• Dimensional STD: Reducer              : B16.5 & ANSI B 16.42 Flanges               : ASME B 16.5 Lining Standard : ASTM F 1545
• Temperature: -29℃
• Vacuum: Full vacuum rated

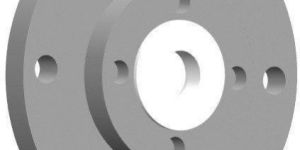

Reducers are mainly two types, concentric reducers & Eccentric reducers, our standard reducers. Generally cast steel with PTFE/FEP lining with flanged end connections.Our standard reducers insure free flow of fluids for horizontal and vertical lines equally.FEP/PFA lined reducing flanges can be grouped into different types, the configuration is based on the closeness of the small bore bolt holes to the large bore bolt holes. Each type is designed so that they do not clash and that the nuts can be fitted successfully.

ALL DIMENSIONS ARE IN MM FOR OTHER DIMENSIONS PLEASE SEE 'LINED PIPE' PAGE MATERIAL OF CONSTRUCTION EQUAL TEE: EQUAL CROSS BODY (PIPE) ANSI B 46.10 ASTM A 216 Gr. WCB / ASTM A 106 Gr. B FLANGE : ANSI B. 16.5 ASA 150W IS 2002 LINER : ASTM D 3418 ASTM D 2116
