Shakti Bellows & Hoses Mfg.co. Sultanpura, Vadodara, Gujarat

We hold expertise in offering our clients an array of SS Corrugated Flexible Hoses. These products are available in ranges from 6 mm to 300 mm to meet the diverse requirements of our clients. Owing to their precise designing, these products are used in varied industries. Moreover, these products are cost-effective and are defined by international quality standards.

We bring forth our clients an assortment of Quick Release & Camlock Coupler. These products are fabricated using optimum grade raw material source from the renowned market vendors. The Single check valve & double check valve offered by us are available in sizes ranging from 1/8" to 2" moc m.s. crome plated , brass , ss 304 & ss 316. Moreover, we also provide quick joint in higher size camlock couler with fmele , male , flange. Furthermore, these are provided with hose connector type in all Maintenance of Certification(MOC).

We are engaged in offering our clients a gamut of Metallic Expansion Bellows. These bellows find extensive application in petrochemical, chemical, steel, engineering and cement plants. Fabricated using high grade raw material, these products are highly durable and strong. Our clients can avail these products at market leading prices.

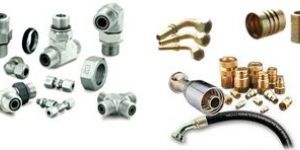

We hold expertise in offering our clients an array of hydraulic fittings. Moreover, these products are cost-effective and are defined by international quality standards.

We are instrumental in offering our clients an array of High Pressure Hydraulic Hoses. The Hydraulic hose & assemblies we offer are available in international standard sizes ranging from 100 r1 to r 13. Moreover, these are also provided with end connection as per America British , German and Metro standard.

We hold expertise in offering our clients an array of ss corrugated flexible hoses. These products are available in ranges from 6 mm to 300 mm to meet the diverse requirements of our clients. Owing to their precise designing, these products are used in varied industries.

We are engaged in offering our clients a gamut of metallic expansion bellows. These bellows find extensive application in petrochemical, chemical, steel, engineering and cement plants.

Shakti bellows & hoses mfg co are an illustrious manufacturer, wholesaler and supplier of quality teflon bellow seal in india.

The gimbal expansion joint is an extension of the hinged type, allowing angular rotation in any plane. The gimbal expansion joint is used in pairs to accommodate lateral deflection in any plane. The pressure thrust is contained within the gimbal arrangement.

The Hinged Expansion Joint can absorb angular movement in one plane. Hinged assemblies are normally used in sets of two or three to absorb large amounts of expansion in high pressure piping systems. Only low spring forces are transmitted to the equipment. The hinged hardware is designed to carry the pressure thrust of the system. and often times, used to combat torsional movement in a piping system.

We are instrumental in offering our clients an array of Hoses. The hose we offer are available in international standard sizes.Moreover, these are also provided with end connection as per America British, German and Metro standard.

We hold expertise in offering our clients an array of hydraulic fittings. Moreover, these products are cost-effective and are defined by international quality standards.

The Gimbal Expansion Joint is an extension of the hinged type, allowing angular rotation in any plane. The gimbal expansion joint is used in pairs to accommodate lateral deflection in any plane. The pressure thrust is contained within the gimbal arrangement. The most common use is a three - dimensional system with two gimbals in combination with one hinged expansion joint. This system accommodates thermal motion in three planes.

An In-Line Pressure Balanced Assembly is designed to absorb small amounts of axial and lateral movement while counteracting the pressure thrust in a system. This is achieved with a series of rods similar to the Pressure Balanced Elbow Assembly and a balancing bellows with twice the effective area as the line bellows. The elimination of the elbow is what makes this expansion joint unique.

A Pressure Balanced Elbow Assembly is designed to absorb axial movement and/or lateral deflection. while absorbing pressure thrust. This is achieved by means of tie rod restraints that connect a line bellows with an opposed balanced bellows also subjected to line pressure. This type of expansion joint can only be used at a change in direction of the piping system.

The Universal Expansion Joint (articulated double expansion joint-containing two bellows joined by a common connector for the purpose of absorbing any combination of the three basic movements : Axial, Lateral and Angular) usually furnished with control rods to distribute the movement between the two bellows of the expansion joint and to stabilize the common connector. Overall control rods govern the movement of the centre pipe section and equally divide motion between the bellows elements. This configuration is used primarily for lateral deflection but can accommodate axial movement as well. Another application for this type of expansion Joint utilizes overall tie rods which fix the overa:1 length of the expansion joint and contain full pressure thrust (only lateral deflection is accommodated).

the double expansion joint extends the magnitude of flexibility and is primarily utilized for straight axial motion. When used in combination with other movements, the predominant motion is straight axial. Each bellows acts as a single expansion joint and absorb the movement of the pipe section in which it is installed (independently of the other bellows). Not to be confused with universal expansion joints.

The simplest type of expansion joint consists of a single bellows element welded to end fittings, normally flange or pipe ends. The single bellows can absorb small amount of axial, lateral and angular movement. The addition of tie rods to a Single Bellows assembly adds design flexibility to a piping system. The tie rods are attached to the pipe or flange with lugs that carry the the pressure thrust of the system, eliminating the need for main anchors.
