Side Indicator Dealers in Vadodara

• Brand Name: KABIR
• Model Number: SMLI-LT
• Place of Origin: VADODARA

MOC : S.S.316 / S.S.304 / P.P OR FRP â�¢ Broad range of chamber styles â�¢ Fabricated non-magnetic chambers â�¢ ANSI and DIN flanges â�¢ Precision manufactured float â�¢ Bi â�� Color Rotating Roller type indicator â�¢ Red & Black Capsule design type indicator Applications:- â�¢ Feed water heaters â�¢ Industrial boilers â�¢ Oil water separators â�¢ Flash drums â�¢ Surge tanks â�¢ Gas chillers â�¢ Height up to 6 Meter in single piece design â�¢ Max. Temperature up to 3750 C (S.S.) and P.P Max 60oC, â�¢ Max. Pressure up to 130 Kg/Cm�² of S.S. and P.P 7 Kg/Cm2 Option:- â�¢ Level switches â�¢ Level transmitters with 4-20 mA output, Hart protocol , Digital Indicator in mm â�¢ Acrylic scale standard / SS. Scale optional â�¢ Customer scales.

We are proud to offer Side Mounted Magnetic Level Indicator, which is one of the most efficient Level Indicators available in the market. Designed by experts, our Side Mounted Magnetic Level Indicator meets strict international quality and performance standards. Specifications Type Magnetic Level GaugeMounting Orientation Top Mounted, Side Mounted & Top - BottomIndicator System Bi-colour Rotating Roller / Capsule Housing for Indicator For Bi-colour Roller - RAIL in Aluminium or SS Housing System For Capsule - Heavy Walled Glass Tube in Aluminium / SS HousingMOC of Indicator ABS PlasticFloat Chamber Non Magnetic Standard pipeMOC of Float ChamberSS 304, SS 304L, SS 316 SS 316L, PP, PVDF, Others on requestFloat SS 304, SS 304L, SS 316 SS 316L, PP, PVDF, Others on requestProcess Connection Flanged in various sizesVent ½"Plugged /½"Needle Valve / ½"Ball ValveDrain ½"Plugged /½"Needle Valve / ½"Ball ValveScale Aluminium / SS / Acrylic engraved in mmLimit Switch Assembly Snap Acting 1 SPDT Micro switch, 5A, 230 VAC or 24 VDC X 2 amp reed SwitchSwitch Housing *Aluminium Die Cast Weatherproof to IP - 65 * Aluminium Die Cast Explosion proof suitable for Group IIA, IIB * Aluminium Die Cast Explosion proof suitable for Group IICElectrical Cable Entry ¾"ET (F) Centre to Centre DistanceBi-colour Rollers - upto 6000 mm Capsule - upto 6000 mmMax. Operating Pressure 15 Kg/cm2 (others on request)

ROTEX actuators are available with variety of Manual overridesdesigned to deliver full rated torque output. The SWH provide an easy,efficient and durable method for manually operating the actuator.The arrangement is available from bore size 63-700.

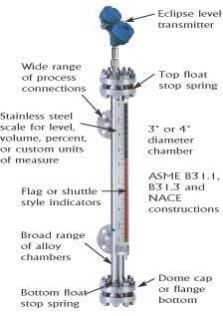

The “KiT” is Orion’s standard, high performance magnetic level indicator. KiT is a single chamber design with 2 “, 2.5", or 3" chamber diameter, as required by the application. There are twelve basic configuration styles, including top mount models. KiT magnetic level indicators are produced in a wide range of materials of construction, including plastics. Orion also offers one of the most complete selections of process connection types and sizes in the industry. KiT may be equipped with a variety of level transmitters and switches, as well as, flag and shuttle indicators with or without stainless steel scales. This enables the Atlas to be a complete level and monitoring control.

Side mounted magnetic level indicator works simple magnetic principle used to get unique, most reliable & absolutely safe level indicator. It is mainly under used for most dangerous liquids even with under high pressure & high temperature.
