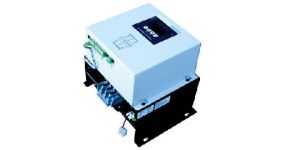

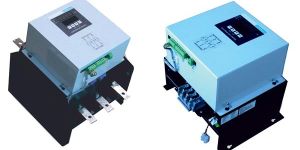

With an objective to fulfill the ever-evolving demands of our clients, we are engaged in offering a wide assortment of Soft Starter. Note: CE Certification Application Soft Start and Stop of a Motor without Jerks Details: Soft Starter belongs to the latest generation of motor starters, incorporation state-of-the-art technology. They are far superior to any of the conventional electromagnetic modes of starting as they can provide a smooth start, reducing the inrush currents considerably, besides offering several other advantages. Further, the built-in energy saving facility helps in reducing power consumption when the motor is partially or cyclically loaded.

We are well known for supplying of wide variety of Soft Starter .

The starting current drawn by an industion motor is directly proportional to the applied voltage. The Soft Starter is designed to make it possible to choose the lowest voltage possible (pedestal voltage) at which the motor can be started – the lowest voltage being dependent on the load on motor.The voltage is ramped up from this pedestal level to full voltage in the set time (selectable 0 to 30 seconds). Pedestal voltage and ramp time can be set at site. It is also possible to Provide controlled torque soft start with current limit option. Soft start feature can also be provided, as Optional.

• Features: Soft Start facility, with initial torque setting by minimum pedestal voltage, ramp time adjustable for setting ramping time, adjustable from 1 to 180 secs
• Rated Insulation Voltage: 600V
• Rated Operating Voltage: 415/440V AC + 10%/ – 15%, 3 phase, 50 Hz
• Rated control supply voltage: 230 V AC + 15%/ – 15%, 1 phase, 50 Hz
• Recommended load: 3 – Phase AC Motor, multiple motors or other loads arenot recommended except under specific circumstances.
• Overload capacity: 115% Continuous, 150% for 10 seconds and 200% for 5 seconds
• Ambient Temperature: During Operation
• During Storage: -40 degC to +70 degC
• Altitude of Installation: 1000 meters (Above 1000m derating had to be done)
• Degree of protection: Main Circuit – IP00, Supply and Control Circuit – IP20
• Main Circuit: Provided with external bypass contactor provision
• Display: LED Seven Segment Display with 4 keys keypad for setting parameters
• Main Settings: Ramp time during start – 1 to 180 sec
• Ramp time during stop: – 1 to 180 sec
• Pedestal (Initial) voltage: – 1 to 60%
• Current limit: – 1.5 to 7 x rated current
• Signal Relays: One C/O relay for bypass contactor
• Control Circuit: Number of digital Inputs – 3 (Start, stop, emergency stop)
• Protections: Internal protection for Overtemperature and transient voltage
• Voltage rating of thyristors: 1400 to 1600 PIV
• Types of cooling: Air-cooled below 250 hp, fan cooled for 250 hp and above.
• Over temperature protection: Normally closed contact output, thermal switch provided for heatsink
• SCR Protection: MOV transient voltage suppressors to absorb high energy voltage transients
