Stainless Steel Hoses Dealers in Vadodara

• Usage: Industrial Use
• Type: Flexible
• Material: Stainless Steel
• Shape: Round
• Color: Grey
• Pressure: 2.5 Mpa
• Brand Name: KSI

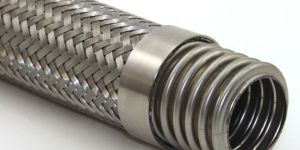

1. CONSTRUCTION AMBICAFLEX stainless steel corrugated hose construct from stainless steel strip that is rolled and the edges welded together to form a thin-walled, gas-tight tube. After the tube has been welded, corrugations are formed into the tube to make it flexible. Corrugations are formed into the tube either mechanically or hydraulically (Hydro forming). 2. CORRUGATION PROFILE There are two corrugation profiles, annular and helical. a. ANNULAR PROFILE   In the Annular Profile Independent corrugations, straight and parallel. b. HELICAL PROFILE   In the Helical Profile One continuous corrugation that spirals around the hose 3. WIRE BRAIDING To give corrugated hose the ability to withstand pressure, stainless steel wire is braided over the hose. Hoses may be single braided (one layer of braid) or double braided (two layers of braid) to achieve even greater working pressures. Braided braid is used on large-diameter hose. Designing the proper braid for each type of corrugated hose requires sophisticated engineering to maintain the proper balance between the braid strength and the hose’s flexibility.   4. CONSTRUCTION MATERIAL OF HOSE Stainless Steel 304 Stainless Steel 316L 5. CONSTRUCTION MATERIAL OF WIRE BRAIDING Stainless Steel 304 6. APPLICATION As suction and discharge pressure hose for oil, steam, liquids, chemical and liquid gases etc. Suitable for Petrochemical, Chemicals, Pharmaceutical, Food, beverages, Oil and Gas etc. industry. As a vibration absorber for pipeline As pump connector at inlet and outlet side of pump installation As loading and unloading hose for liquid bulk transfer by truck and storage terminals 7. ANUULAR CORRUGATED HOSE SPECIFICATION

Construction : Flexible tubing, single thickwall corrugation, without packing, annular corugation hydraulically formed,Pressure Range : Upto 150 kgcm³ or higher against specific requirement. The pressure value indicated in the table (technical data) is fuction of the diameter, of the temperature, of the number of braids, of the material used and of the type of application.

• Material: Stainless Steel
• Type: Hydraulic Hose Pipe
• Color: Silver
• Country of Origin: Made in India
• Usage/Application: Industries
• Surface Finish: Polished

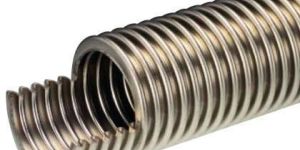

Stainless steel flexible hoses, A corrugated flexible metallic hose with standard pitch annular corrugations, hydro formed from butt welded precision tube. The depth and shape of the corrugation provides good flexibility and cycle life.

• Size: 5 mm to 25 mm I. D.

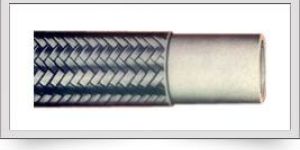

TEFLON HOSES are dependable, unique in performance. They do not fail even in adverse conditions. They have un-limited storage life. Can withstand temperature from -100° F to +500° F         Construction       Inner Core TEFLON - Virgin, PTFE tube of uniform wall thickness. Reinforcement One braid of Stainless steel wire. Cover Black heavy rubber cover resistant to oil, weather and abrasion or neoprene cover.                       Application       A versatile hose with numerous uses for all chemicals, diluted or concentrated acids, alkalies, for highly corrosive gases, solvents for ammonia and brines. Very good hose for steam.       Advantages of Teflon Hose Over Other Hoses       › Teflon hose when wire braided offers flexible hose construction un-matched by any other hose. › Teflon hose remains flexible at low temperature and it's strength is not affected. At high temperature it's flexibility does not diminish. › It's co-efficient of friction is very less and there is no pressure drop. › The most important advantage of Teflon hose is that it does not fail under severe flexing fatigue. › Low maintenance cost during long service life. › Less production loss.

• Material: Stainless Steel
• Country of Origin: Made in India
• Size/Diameter: 50 mm(Inner Diameter)
• Brand Name: Flexico Engitech
• Usage: Fire Fighting
• Surface Finish: Chrome Finish
• Length: 8 inch
• Outer Diameter: 100 mm

• Color: Silver

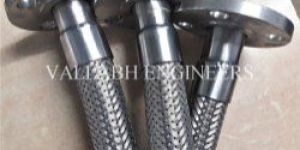

• Brand Name: Vallabh Engineers
• Material: Stainless Steel
• Application: Gas, Water, Oil Supply
• Material Grade: SS304, SS316

Stainless Steel Hoses, Hydraulic Hose Assemblies, PTFE Hoses

stainless steel wire braided teflon hose, corrugated metallic flexible hoses

Stainless Steel Hose, End Fittings, hose assembly, Composite Hose

Stainless Steel Hose, Hydraulic Male Fitting, composite hose pipe

We are offering stainless steel flexible hose and we are making as per astm/dn/bs/iso standard, we are produce: dn 6 mm ( 1/4'’)~dn 300 mm ( 12’’).

stainless steel wire braided hose, Hydraulic Hoses, Industrial Hoses

stainless steel annular corrugated flexible hoses, Food Grade, hot water hose
