Temperature Gauges Dealers in Vadodara

• Type: Temperature Gauges
• Shape: Round,Round
• Color: Silver
• Display Type: Digital
• Feature: Easy To Fit, Perfect Strength
• Performance: Optimum
• Advantage: Easy to Operate

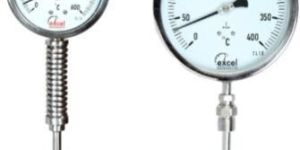

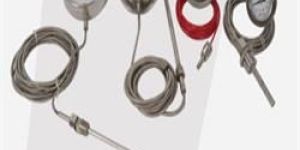

System Mercury – in – steel (MSDT) Bimetallic (BDT) Gas filled (GFDT)   Type Regid Stem type for local and Capillary type for remote Indication in MSDT and GFDT and Regid Stem type only in BDT   Mounting Vertical / Horizontal / Every angle type in Regid Stem. Direct / Surface / Panel Mounting in Capillary. Orientation of Capillary can be from back of case or from bottom of case.   Temp Ranges MSDT/GFDT : (-)38 to (+)50 / (-)20 to (+)80 /(-)10 to (+)50 /0-100 / 120 / 200 / 300 / 400 / 500 / 600°C GFDT : (-)40 to (+)40 / (-)10 to (+)50 / 0 – 100 / 120 / 150 / 200 / 250 / 300°C BDT : (-)40 to (+)40 / (-)0 to (+)50 /(-)20 to (+)80 / (-)40 to (+)40 / (-)0 to (+)50 /(-)20 to (+)80 / 0 –100/120/150/200/250/300/400°C Scales in °F Ranges or Dual  Scales both in °C or °F are also manufactured   Compensation Case Compensation as standard. Full Compensation systems are also offered in Mercury – in – steel (MSDT) and Gas filled (GFDT)   Dial Sizes 2 ½”,  4” & 6”   Casing Die Cast Aluminum / SS, (IP 65)   Stem Material Chrome Moly Bulbs with extension in MS / SS304 / SS316 MSDT . GFDT. / SS304 / SS316 in BDT.   Capillary Inner Capillary can be of MS / SS304 in case of MSDT / GFDT. Outer Protection Capillary can be Copper / SS 304 /SS 316 / SS304 Spiral / Copper PVC  Coated  Capillary Lengths can be upto max 30mtrs   Stem length There is certain minimum lengths depending upon stem diameters and ranges as  the system its volume dependent in case of MSDT / GFDT.   In BDT length varies with range and stem Diameters. Details charts could be provided.   Accuracy Standard accuracies are ±1% in MSDT & GFDT, in BDT ±1% upto 250°C and ±2% above that.   Specials Temperature Gauges with Single / Double Sliding or Magnetic contacts. Temperature Gauges with built in Transmitters (Resistance based) Temperature Gauges with maximum reading Pointers. Temperature Gauges with Radium Scale. Temperature Gauge with Built in Thermocouples/RTD’s.

• Material: SS
• Measuring Range: 0 to 160 Degree C
• Dial Size: 100mm
• Accuracy: 1%
• Quality: Optimum Quality
• MOQ: As per Requirment

• Type: Rigid Stem, Every Angle & Distant (Capillary-Maximum up to 15 meters).
• Connection: 1/2" BSP/NPT Adjustable, Others Optional
• Nominal Size: 100mm, 150mm
• Accuracy Class: +/- 1% of FSD
• Sensitivity: 0.2% of Range Span.
• Bourdon Material: Chrome-Moly Steel (STD), Stainless Steel (Optional).
• Case & Bezel: SS304 Weather Proof to IP-55 & 65 as per IEC-60529, Drawn Steel Black Powder Coated.
• Bulb & Stem Dia: 6mm, 8mm, 10mm (STD) & 12mm (Optional)
• Max. Stem Length: 2000mm
• Mounting: Direct Bottom, Direct Back, Surface Bottom, Flush Panel Back entry. (Surface Bottom Applicable for Capillary type gauges only)

• Display Type: Analog
• Country of Origin: Made in India
• Material: Stainless Steel
• Usage/Application: Industrial
• Measuring Range: 0 to 120 Degree Celsius
• Brand: Unique Air Tech
