Toroidal Core Dealers in Vadodara

• Material: CRGO
• Packaging Type: Wooden Box
• Length: Upto 700 mm
• Width: Upto 150 mm
• Camber: .9 mm max

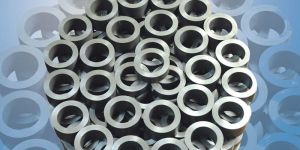

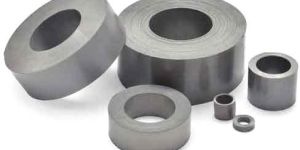

Vilas Transcore Ltd. specializes in manufacturing Toroidal Cores in c.r.g.o. materials for low, medium and high frequency, CTs, PTs and various types of Transformers.   Vilas Transcore is devoted to the development of high-efficiency energy-saving and excellent performance magnetic cores. As a reward of its continuous efforts, the company has been the leader of magnetic core manufacture in India. Quality is the priority issue in Vilas Transcore’s philosophy; it was certified to TUV ISO 9001 quality assurance system in 2008. Vilas Transcore produces Toroidal Cores in many different dimensions made to order to customer specification. Core can be manufactured in material grade ZDMH/HPDR, ZdKH, MoH, M4 as per the specification of the customer. Cores can be manufacture in material thickness 0.18mm, 0.23mm, 0.27mm, 0.30mm and 0.35mm. Cores are available in epoxy coating with varnish and bare cores according to customer specification. Electrical Testing All cores, unless otherwise state, are individually tested to the standard guarantee specifications. Special test conditions, when required, can be applied and guaranteed to suit customers’ individual requirements.

Toroidal Coresand Toroidal Ring Cores offered by us have find usage in mains transformers and are wound from cold rolled grain oriented (CRGO) silicon steel strips to provide optimum performance. These toroidal cores and ring cores are wound by automatic core winding machine and are annealed in high vacuum furnace under protection atmosphere or in continuous tunnel furnace, which results in features like compact volume, light, low magnetic leakage and hum & high efficiency. Specifications :   Sizes upto 1000 mm OD In CRGO grades required by customer, duly wound and annealed in inert atmosphere Guaranteed No load current (AT /Cm) as per B-H Curve of particular grade In house testing facilities and 100% testing done on all Toroidal Cores atflux densities specified by customers

toroidal crgo core, Crgo Coils, crngo sheets, crngo coils, CRGO Sheets

CRGO Toroidal Core, Transformer Core Lamination, Crgo Lamination

Our company is engaged in manufacturing, supplying and exporting of Toroidal Wound Cores. We have been successfully catering to all the requirements of our esteemed clients by offering high quality Toroidal Wound Cores. Our Toroidal Wound Cores are suitable for low, medium and high voltage CTs and PTs.Available in Rectangular, Round shapes cut cores, Step cores, Step lap design with vertical or horizontal step lap round-cut cores Cut or uncut (centre cut or off centre cut) designs Patterns with or without steps Painted or varnished coatings Other Details Winding of Wound Cores as per client specification Annealing in controlled Nitrogen atmosphere for 18 to 24 hours (at 800 C ) Testing for electrical values and issue of test certificates Painting or impregnation ( if required )

Toroidal Core, crgo electrical transformer core, electrical stamping

Toroidal Ring Core, aluminum fin, Step Lap Transformer Lamination

Toroidal Core, CRGO C Core, transformer stamping, lamination stamping
