The VAF model meters from Trinity are True RMS type digital meters for use in three phase four wire LT electrical systems. The design of these meters is based on proven micro-controller technology, resulting in compact and accurate meters. The design uses powerful micro-controller based technology. The meter uses state of the art Digital Signal Processing (DSP) circuitry to achieve very high accuracy measurement of True RMS value of all parameters. The meter displays the readings on Crisp Super bright LED Displays.

The VAF model meters from Trinity are True RMS type digital meters for use in three phase four wire LT electrical systems. The design of these meters is based on proven micro-controller technology, resulting in compact and accurate meters. The design uses powerful micro-controller based technology. The meter uses state of the art Digital Signal Processing (DSP) circuitry to achieve very high accuracy measurement of True RMS value of all parameters. The meter displays the readings on Crisp Super bright LED Displays.   Features Class 1.0 accuracy Compact 96 x 96 x 55 mm DIN enclosure. Ideal for supervision & audit of specific loads. Micro-Controller based. True RMS. Parameters Displayed V, A, Hz.

Country of Origin : India

Features Multiparameter monitoring. All parameters with default accuracy class 1.0. Measures V, I, KW and Hz. All parameters with default accuracy class Compact 96 x 96 x 55 mm DIN enclosure. Micro-controller based. True RMS. Options available on request Tiny Pro 3 (PF,KW and KWH), Tiny Pro 4 (V,I,Hz, and KWH) Tiny Pro 5 (V,I,Hz,KW and KWH), Tiny Pro 6 (V,I,PF,Hz,KW and KWH),

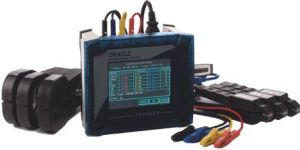

Trinity has designed its Portable Power Analyzers, ORACLE to be the most versatile instrument available today. Oracle which is, Three Phase Power Analyzer and Recorder, is our next generation analyzer, including important new features requested by our customers. From substations, to commercial & industrial, to residential monitoring, Oracle has comprehensive measurement and power quality analysis capabilities. These high performance capabilities, combined with the latest in electronic technology, make it ideal for both utility and industrial applications.

Electrical Power Meter The Power Pro from Trinity is an easy-to-use, cost effective electrical power meter that offers all the basic measurement capabilities required to monitor an electrical installation. In addition to measuring the instantaneous parameters, it also measures accurately all three energies, and also demand, thus helping to measure and control energy costs. Over the basic metering, it optionally provides two relay outputs, RS485 port supporting MODBUS RTU protocol, dual source metering and THD measurements.   Electrical Power Meter The Power Pro from Trinity is an easy-to-use, cost effective electrical power meter that offers all the basic measurement capabilities required to monitor an electrical installation. In addition to measuring the instantaneous parameters, it also measures accurately all three energies, and also demand, thus helping to measure and control energy costs. Over the basic metering, it optionally provides two relay outputs, RS485 port supporting MODBUS RTU protocol, dual source metering and THD measurements.

Trinity has designed its Portable Power Analyzers, ORACLE to be the most versatile instrument available today. Oracle which is, Three Phase Power Analyzer and Recorder, is our next generation analyzer, including important new features requested by our customers. From substations, to commercial & industrial, to residential monitoring, Oracle has comprehensive measurement and power quality analysis capabilities. These high performance capabilities, combined with the latest in electronic technology, make it ideal for both utility and industrial applications.

TRINITY has a versatile range of Power Factor Correction relays suitable for all applications. These controllers are available in economy version with minimum features, intelligent models with advance control algorithm and also sub-second switching models with solid state outputs. The entire series is economical user friendly and extremely reliable. Designs of these have been field proven for nearly fifteen years with more then 10000 units in service.

The unit is low cost, easy-to-use, individual and multifunctional that enables to measure all the basic parameters required in an electrical installation and monitors electricity over and above basic metering. The entire range is very rugged and cost-effective. All these products are field proven and more than 100,000 units are active in service.   Micro-controller based Measurement of all important Electrical Parameters All parameters with default accuracy class 1.0S Displays with customized LCD Individual voltages and currents for all three phases (R-Y-B) Individual three powers-KW, KVA and KVAR Individual PF and system PF with lead (-) and lag side Frequency (Hz), three energies (KWh, KVAh, KVARh)   Parameter Displays V, A, KWH, KVAH, KVARH, PF, Hz, System & Phase wise KW; KVA; KVAR.

Multifunction Meters. Multiparameter monitoring. Measures 16 Electrical values....

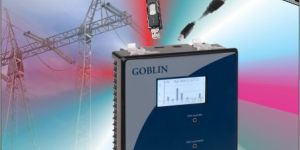

The digital power meter GOBLIN is a micro-controller based unit which not only measures a host of electrical parameters to display them on a 128 x 64 backlit LCD, but also acts as a comprehensive load managing device due to its four numbers of output relay contacts. These outputs are individually field programmable for both the parameter on which to generate alarm as well as the values on which to activate alarm and deactivate it. In addition to this flexibility in terms of load management, the meter also has two serial ports: USB port and RS485. RS485 supports MODBUS RTU protocol for connections to EMSSCADA. Goblin has two USB ports-one where a cable connection to laptoppc is made(Device mode) and another where the unit directly accepts a pendrive(Host mode).

To protect our entire range of products from external factors that can be damaging, we have a state-of-the-art packaging unit equipped with the latest secure packaging technologies and materials. Our organization is renowned as reliable distributor in the industry and based in the well-connected state of Gujarat(India).

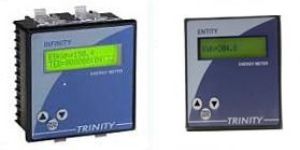

Infinity and Entity from Trinity are digital energy meters for use in three phase electrical systems for sub-metering applications. The design of these meters is based on proven microcontroller technology; with front end ASICs resulting in compact and accurate energy metering. The accuracy of the meters is maintained even under severely distorted waveform conditions which occur due to harmonics in the system.   Features Class 1.0s accuracy as per IS13779 Class 0.5 accuracy also available Microcontroller based Display: 16 x 1 LCM (Entity), 16x2 LCM with dual source(Infinity), 16x1 LCM without dual source(Infinity). Optional RS-485 Communication port with MODBUS-RTU protocol. Dual source measurement (EB & DG) optional available. Whole current models for 32A and 50A available.

The digital power meter GOBLIN is a micro-controller based unit which not only measures a host of electrical parameters to display them on a 128 x 64 backlit LCD, but also acts as a comprehensive load managing device due to its four numbers of output relay contacts. These outputs are individually field programmable for both the parameter on which to generate alarm as well as the values on which to activate alarm and deactivate it. In addition to this flexibility in terms of load management, the meter also has two serial ports: USB port and RS485. RS485 supports MODBUS RTU protocol for connections to EMS/SCADA. Goblin has two USB ports-one where a cable connection to laptop/pc is made(Device mode) and another where the unit directly accepts a pendrive(Host mode).   The unit is meant for use in three phase four wire / three wire systems. The installation type, CT ratios and PT ratios are site selectable. The Load Manager with its four relay contacts can be used as a Demand Controller. The method of Demand calculation is sliding window and fixed window. Features Accuracy Class 0.5 (as per IS14697) Displays more than 20 Parameters. Four Relay contacts, individually field programmable, for alarm parameter as well as on/off values. RS-485 MODBUS-RTU Connectivity. Large 128 x 64 graphical LC Display. USB Port for downloading data Directly accepts pen-drive to transfer logged data(Host mode) On board 2MB of non-volatile memory. On board data logging with field programmable log duration. CT / PT ratios field programmable. Odd Harmonic Analysis up to 15th for all voltages and currents, including THD.

EMPOWER from Trinity is an electrical power meter, for use in three phase three/four wire electrical systems. It measures the phase voltages, currents, PF, Hz, system KVA, system KW, system KVAr, Active Energy (KWh) and Apparent Energy (KVAh). The various parameters measured are displayed on a 4 digit x 3 Row Red 7 segment LED matrix for easy visibility and readability. The CT ratio (primary) can be programmed at site using the front membrane key. The meter uses state of the art Digital Signal Processing (DSP) circuitry to achieve very high accuracy measurement of true RMS value of all above parameters. The meter accuracy is class 1.0 for all parameters including KWh.   Features Multiparameter monitoring. Measures 16 Electrical values. All parameters with default accuracy class 1.0 Compact 96 x 96x 55 mm DIN enclosure. Bright, easy to read 7 segment LED matrix. Micro-controller based. Parameters Displayed V, A, KWh, KVAh, KW, KVA, KVAR, PF, Hz. Specifications Direct Voltage Input : Up to 300V L-N Burden 0.5VA Direct Voltage Input : Up to 500V L-L Burden 0.5VA Secondary Current Input: 5A or 1A (To be specified at the time of Ordering) CT Primary : Site Selectable Range of Reading : 5 - 5000A Burden :< 1.0VA Overload (Through CT) : 5A CT = 6A RMS Continuous 1A CT = 1.2A RMS Continuous (Whole Current) : 120% of Imax continuous. Frequency : 45 to 55 Hz Accuracy : 0.3% of Reading Three Energies Range of Reading : 0 to 9999999.9 Accuracy : 1.0S as per IS 13779. System PF Accuracy : 1% of Reading (IPFI>0.5) Range of Reading : 0.05 to 1.00 Lag/Lead System KVA, KW & KVAR Accuracy : 1.0% of Reading Display : 0.56 Red Seven Seg. Communication: RS485 Port with EMS / SCADA using Modbus-RTU protocol. Enclosure : 96X96X55 mm Micro-controller based.

The electrical power meter, Xpert is a micro-controller based unit which measures various electrical parameters, and sequentially displays on a 128X64 backlit LCD. The unit measures the three phase voltages, currents, frequency, power factors, individual Harmonic data as Histogram including Total Harmonic Distortion as well as individual current and voltage waveforms for all three phases. Based on these inputs, the system KVA, KW and KWh can also be calculated. For the correct operation of the unit, the only basic care required is to ensure that the phase sequence of the three phases is R-Y-B and the polarity of the CT secondary is correct. The unit is fully solid state and will give years of trouble-free service once installed correctly.   Features Compact 96 X 96 X 55 mm! Graphical Display 128 X 64. Accuracy: Class 1.0 & Class 0.5 (Optional). Odd Harmonics up to 15th of individual Voltage and Current waveforms including THD. RS485 port for Communication EMS/ PLC/ SCADA (Optional). Dual Source Measurement (Optional). Two Relays - individually programmable for Alarm/ Trip (Optional). Histogram & Tabular display of Harmonic content. Wave shape display for all voltages & currents.

Infinity and Entity from Trinity are digital energy meters for use in three phase electrical systems for sub-metering applications. The design of these meters is based on proven microcontroller technology; with front end ASICs resulting in compact and accurate energy metering. The accuracy of the meters is maintained even under severely distorted waveform conditions which occur due to harmonics in the system.

Features Available in 1Phase2Wire, 3Phase4Wire/3Wire system Accuracy: Class 1.0 & Class 0.5 (Optional) 0.56" Seven Segment LED (In Volt, Amp, Freq. & 1-Phase PF Meter) 16 X 1 Line LCD (In KW300 & PF300) Specifications Direct Voltage Input: 0-300V AC for P-N & 0-500V AC P-P Secondary Current: 0-5000A AC Frequency range: 45-55Hz PF range: 0.000-1.000 Size:96 X 96 X 55mm

Digital Panel Meters High accuracy Guaranteed to Class 0.5 Easy readability...

The design of these meters is based on proven microcontroller technology; with front end ASICs resulting in compact and accurate energy metering. The accuracy of the meters is maintained even under severely distorted waveform conditions which occur due to harmonics in the system.

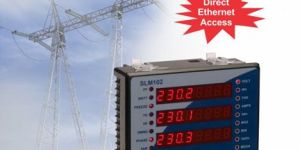

Application Sub-station Metering Industrial Large Feeder Metering Load profile analysis. Sub-Metering Power generation Power Quality analysis. Comprehensive and Accurate Measurement 3-phase Voltage (L-N) 3-phase Voltage (L-L) 3-phase Current KW (3-phase and Total) KVAR (3-phase and Total) KVA (3-phase and Total) PF (3-phase and Total) Bidirectional KWh KVAh KVARh Frequency % THD Demand & MD Relay Outputs Options The SLM102 has four relay outputs, related at 3A. These can be used for alarm/trip events. The use of these relays is totally field configurable, for the parameter on which to operate, the value on which to trip, the delay offer which to trip and the value at which to open. This enables the SLM102 to be used as a maximum demand controller. Communication EthernetThe SLM102 has a standard Ethernet-TCP/IP connection. Multiple socket Ethernet connectivity enables the unit to respond to as many as 12 different requests. The SLM102 can act as a small web-server.This on-board web-sever, offers quick and easy access to basic measurement, without special software. Built-in web pages display a range of power, energy and basic power quality information through any web enabled device. It also supports MODBUS-TCP/IP protocol. Features Exceeds class 0.2 revenue accuracy in Power & Energy Metering. On board Ethernet port supporting TCT/IP protocol. Acts as a small web-server. Also supports MODBUS TCP/IP. RS485 port with MODBUS-RTU protocol. Demand Measurement: Fixed or sliding. KW or KVA. Harmonics measurement: All six waveforms upto 29th including THD. Bright Red LED display. Three rows of 8-digits each ensure unbroken display of even large energy register values. Four relay outputs for Alarm & Trip. Limits are field programmable. Event definition and logging. Datalogging of all parameters for load pattern analysis. 2 Mbytes memory on-board. USB 2.0 port to download logged data. USB 2.0 port based programming of field selectable parameters. Advance Measurement Features SLM102 also measures the minimum & maximum values and also allows definition of events, so that the user can define the parameter of interest, event definition value and related time delays. Voltage min/max. -3-phsae L-N Voltage min/max. - 3-phase L-L (applicable only for 3P3W) Current min/max. - 3-phase. Hz min/max. Active Power min/max. - 3-phase & Σ system Apparent Power min/max. - 3-phase & Σ system Harmonic Measurement SLM102 measures the odd harmonics for 3Ø voltages and 3Ø currents upto 29th, includidng THDs for each waveform. Data Logging The SLM102 has 2Mb on-board non-volatile memory. The unit has a user programmable log capacity, that is the log duration is site selectable. A complete electrical system snap-shot is saved, to be later downloaded using the USB 2.0 port, into a PC based utility supplied free by Trinity.

TRINITY has a versatile range of Power Factor Correction relays suitable for all applications. These controllers are available in economy version with minimum features, intelligent models with advance control algorithm and also sub-second switching models with solid state outputs.The entire series is economical user friendly and extremely reliable. Designs of these have been field proven for nearly fifteen years with more then 10000 units in service.
