Check Valves Dealers in Makarpura, Vadodara

• Material: Carbon Steel, Stainless Steel
• Application: Industrial
• Feature: Corrosion Resistance, Durable, Fine Finshed
• Finishing: Polished
• Inlet x Outlet: 1/4
• Construction: Fabricated design
• Max Pressure: 500 bar

High Quality Flow & Check Valves of world-renowned brands like ATOS, REXROTH, VICKERS, YUKEN, etc.,

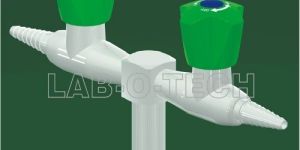

LT-11044.0 180° DOUBLE BENCH TAP STANDOUT 90 MM APPLICATION : Bench mounting DETAILS : Water flow around 26Imin At 3 Bars pressure Test Pressure: 9 Barsair Max working pressure: 10 Bars SURFACE PROTECTION: Epoxy powder coating RAL 7035 MATERIALS: Brass Handle in PP HEADWORK SEALING: EPDM temperature working range : 0-70° CERAMIC temperature working range : 0-70° CONNECTION TAP: Male thread G38” - G12” STANDARD AND NORMS: EN13792:2000 DIN12898 DIN12918 ISO2281 OPTIONS: Lever model LEV001STI instead of the handle (to use only with ceramic headwork) With chemical nickel plating 17 microns inside WEIGHT: WARRANTY 1 YEARS 1530 gr. (Approx)

Avail from us finest quality inline check valve that is widely appreciated and demanded for its superior performance and compact design. Our inline check valve has been manufactured from high grade raw materials. Also, we duly check the industrial check valve before delivering them to the customers. details size : 14" to 1 12" bsppoppet type steel constructioncracking pressure : 5 to 50 psiworking pressure up to 350 bar

• Brand Name: Pravin
• Material: Stainless Steel
• Condition: New
• Media: Water

• Country of Origin: India
• Size: 0-100mm
• Certification: ISO 9001:2008 Certified
• Weight: 10-15kg
• Color: Grey, Silver
• Feature: Blow-Out-Proof, Casting Approved, Good Quality, Investment Casting
• Condition: New

The raw material that is used for manufacturing superior grade products is sourced from the reliable places after complete quality confirmation. We are one of the respected names engaged in the process of supplying quality Motorised Double Flap Valve at nominal rates.

Leveraging on our rich industrial expertise, we make available in the markets Non Return Valves. Designed with precision, Non Return Valves are high on demand in the national and international markets. Non Return Valves serves the requirements of various industries where liquid, air and gas is used. Flawless functioning, durability and long functional life are some of the special features of Non Return Valves manufactured by us. Variety Inline check valveCheck valve Raw Materials Used Inline check valve: Poppet type Steel ConstructionCheck valve: Body Material : Cast Iron, Gun Metal Sizes available Inline check valve : 1/4" to 1 1/2" BSPCheck valve : 1/2" to 2" BSP Attributes Inline check valveCracking Pressure - 5 to 50 PSIWorking Pressure up to 350 BarCheck valveAvailable in Threaded and Flage TypeWith or Without Spring Type Packaging available Standard packaging or according to customer’s specifications Minimum Quantity Order 10 Pieces

• Brand Name: SG
• Material: A 105, WCB, CF8, CF8M
• Media: Hot Oil, Chlorine, Critical Gas/liquid, Steam.
• Usage: No return flow, reliable
• Country of Origin: Ankleshwar, Gujarat
• Pressure: 800#, 150/300#
• Port Size: 15mm to 300mm
• Temperature of Media: 400 deg C

Manufacturers of forged lift check valves in a 105, f 304, f 316, f 11, f22 etc. And cast swing check valves in wcb, cf8, cf8m in 150300#.

• End Connection: : Wafer Type, Flangeless, Sandiwch Pattern
• Design Standard: : API 594 / API 6D Standard
• Inspection & Testing Standard: : API 598
• Flange To Flange Distance: : As Per ANSI B API 594 / API 6D / ANSI B 16.10
•  : : Suitable to mount between two flanges.
• Manufacuring Size Range: : 3″ (DN80) to 24″(DN 600)
• Pressure Rating of Valve: : 150# / 300#
•  : : PN 10 / PN 16 / PN 25 / PN 40

A name of the product “DUAL PLATE CHECK VALVE” self say about design construction and operation of valve. This type of check valve is simple assembly of 1) dual -double flap or can say door, 2) single piece casted heavy duty body, 3) spring and 4) stem. On the centre of body two stem holes are provided to mount / fix dual flap plate and which perform from centre as like a hinge in direction of flow with tension of spring. One stem perform as flap holes guide shaft and another as disc opening limit stop pin. Spring supports to the disc to get normal close position of valve. Body have choice of either elastomer soft rubber seats or metal to metal seat for higher pressure and temperature application with StelliteF6 Hard face. In elastomer rubber seated check valve seat choice options are Neoprene, EPDM, NBR, Nitrile, Buna-N, Hypalon, Ebonite, Silicon, Viton etc.

• Design Standard: MANJUFACTURER'S STANDARD
• Shell Design: ANSI B 16.34
• Face To Face Dimensions: ANSI B 16.1 UPTO 4">6" MFR'S STANDARD
• Flange Connection Rating: ANSI B 16.5 150# / DIN PN 10
• Testing Standard: BS EN 12266-1
• Connection: FLANGED, RF

CV Series, One-way valve is for in-line use. Suitable for any type of hydraulic system using liquids that are not highly viscous. The standard types are in Trivalent plated carbon steel and are therefore especially suitable for non-corrosive mineral based oils and liquids.   Features Standard types:   Good pressure / flow characteristics, see graphs Valve body in Trivalent plated carbon steel Piston in carbon steel Internal spring in silicon steel - stabilized Cracking points 0.35 bar and 4.5 bar are standard, other values on request   Alternative Uses: As a pressure sequence valve by changing the internal spring to an appropriate 'cracking point' value. For flow restrictor check valves a central bleed hole can be provided, sized to customer requirements.

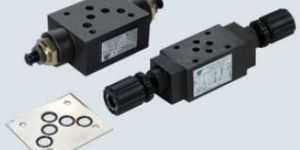

We are a renowned Modular Throttle Check Valve Manufacturer and Supplier. The Modular Throttle Check Valve offered by us controls the flow for positive direction pass oil port. Big and small Modular Throttle Check Valve can be adjusted by handle. It passes to check valve for reverse flow. Dimensional accuracy, sturdy make and corrosion resistance are some of the prominent features of the Modular Throttle Check Valve. Specifications : Max. Pressure : 210 bar Max. Flow Size : 02 up to 35L/min & size 03 up to 70L/min

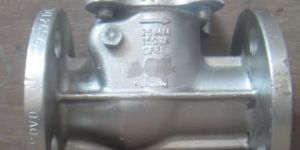

"r-square" cast steel swing check valves are used in pipe lines with liquid and gaseous fluids over a wide range of line pressures and temperatures "r-square" swing check valves body designed for strength to meet operating conditions and contoured to minimize erosion and resistance to flow. the disk is opened and sustained in open position by the velocity pressure of the fluid and closed by the force of gravity, seating load and resultant tightness is aided by back pressure in the line. the body seat ring threaded to the body to avoiding leakage the path between the seat ring and the body. The seating surfaces are ground and lapped. "r-square" check valve are offered with flange and butt weld ends to bs 1868.

• Material: Stainless Steel
• Power: Solenoid
• Port Size: 3"
• Port: mumbai
• Packaging Details: corrugated boxes
• Standard or Nonstandard: Standard
• Media: air
• Structure: Diaphragm
• Place of Origin: Gujarat, India
• Temperature of Media: -20 deg c to 85 deg c

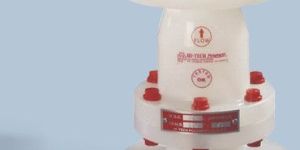

• Material: Polypropylene
• Valve type: Check valve (vartical installtion)
• Body: Polypropylene
• Bonnet: Polypropylene
• Ball: Polypropylene
• Bodyseal: Epdm / neoprene
• Ball seat: Epdm / neoprene
• Bolts & nuts: Ms hot dippes galvanised
• End connections: Flanged
• Connection rating: Ansi b 16.5
• Hydraulic test: Body : 10 kg/sq. cm
• Pressures: Seat : 10 kg/sq.cm

Non-Return Valves are normally closed, leak proof, designed to prevent reverse flow in very low or high flow applications, will check in any position. Paarth Non-Return Valves utilize a normally close design, which is entirely automatic in action and operate silently. It seals in the identical location every time, allowing more reliable sealing and prolonged life. It requires very nominal pressure to open and operate. Paarth Non-Return Valves are made in a many different sizes, seats and body materials. The Sealing element is pushed off the value seat no sooner the inlet pressure is sensed thus opening the value for the fluid to flow. Paarth Non-Return Valve Operates under a high flow condition with relatively no force or stress on the sealing element, which is supported internally. Paarth Non-Return Valve will close upon sensing a back flow. Features: » Quick opening and positive closing   » No leakage at any differential pressure   » Excellent flow characteristics   » Compact in Size » Maintenance free

• Design Standard: MANJUFACTURER'S STANDARD
• Shell Design: ANSI B 16.34
• Face To Face Dimensions: ANSI B 16.1 UPTO 4">6" MFR'S STANDARD
• Flange Connection Rating: ANSI B 16.5 150# / DIN PN 10
• Testing Standard: BS EN 12266-1
• Connection: FLANGED, RF
