Vibrating Screen Dealers in Makarpura, Vadodara

• sizes: 1000 mm to 2400 mm, 1000 mm to 5600 mm

"High Performance way of Removing Suspended Solids from Liquids” this “Jagtap” principle introduces liquid under minimum head loss conditions and rotates the screen in the opposite direction so that maximum shear velocity is achieved. This is used for fast separation of solids from liquid. This principle not only carries the operation at reduced cost, but also increases substantially the quantity of raw juice handled on a specific screen size. Screening efficiency is also improved as, in all cases; the raw juice is introduced tangentially on to the contra-rotating face. Because of the shallow approach, this system also increases the percentage of Bagacillo capture off the screen surface. Drums rotating in same direction as that of the juice flow, causes flooding of the juice adversely affecting screening efficiency. Rotary screen sizes range from 1000 mm to 2400 mm ID and from 1000 mm to 5600 mm long. Flow rates are dependent on Rotary Screen’s open area and size.

• Sizes: 600 mm to 2500 mm
• Lengths ranging: 1500 mm to 8000 mm
• Capacity (TPH): 1000

Vibrating screens are specially crafted motorized devices that are used in applications across a spectrum of industries, be it the food, ceramics, sand and allied coarse or chemicals. particularly manufactures special type of vibrating screens which are powered by internal vibratory motor. The complete device is available in various sizes and types, specifically applicable for different types of industrial applications. The circular vibrating screen, which is the most commonly preferred screen of the two variants available in the market, is a robust screen specially crafted for coarse and medium fine applications.

Vibrating screens are useful in efficient grading of coarse from the crushed materials. Vibrating screens are useful in efficient screening of gravels, crushed stones, sand, chemicals, minerals, slag, coal and any other bulk materials.

FINEX offers Circular Vibroscreens Sizes Ranging from -12 inches to 84 inches dia circular vibroscreens. Single deck to Three Decks screens Powder grading in four fractions Capacity-100kgs to 10000kgs/hr Liquid solid separation. 100liters to 300,000liters/hr 4mesh to 400 mesh wire mesh screens Accessory-Anti blinding balltray or scrapers to keep screen clean .

We offer external fed rotary screen. In jagtap rotary screen influent enters through a head box where it passes through the slowly rotating screen opening. The solids larger than the screen opening are retained and rotate on the screen surface and then removed by a tensioned doctor blade or rotary brush which rides the face of the screen with just the right amount of pressure. The jagtap rotary screen is self-cleaning under normal operation; the natural action of waste water flows through the screen creates a powerful backwash which results in a continuously clean screen surface. the jagtap rotary screen is equipped with internal spray nozzles to removed grease, fats and other contaminant build-up from the screen openings. the jagtap rotary screen is used in a wide variety of industrial process and municipal waste water pre-treatment application, including:

• Material: Mild Steel
• Motor Power: 10-20HP
• Technique: Hot Rolled
• Capacity: 18-50 TPH
• Number Of Decks: 2 and also available in 3,4
• Plate Thickness: 10-20mm
• Finishing: Paint Coated

BMM  make Polygonal Sieves & Vibrating Screens are designed to do conditioning  of return green sand for foundries. They are made to specific standards depending upon the type of Foundry.  The sieves & screens are well protected inside the hood / desk for longer life & for optimum performance.

• Material: Aluminum, Iron, Nickel, Plastic, Stainless Steel
• Application: Industrial
• Color: Black, Grey, Silver
• Voltage: 220V, 380V, 415V, 450V
• Feature: Corrosion Resistance, Easy To Fit, Good Quality, High Performance, Perfect Finish
• Weave Style: Plain Weave, Welded

• Material: Mild Steel
• Capacity: 1 Ton/day
• Hardness: HRC 56-58
• Usage/Application: Granulator machine
• Thickness: Up to 25 mm

We are offering hammer screen plate.

The Vibrating Screen is used in a lot of industries dealing with crushing plant, chemical, ceramics, automobile, biscuit, cement, food, lime minerals, clay, sugar mills, drugs, electronics and rubber etc. Our Vibrating Screen has a main frame, electric motor, Screen web, eccentric book, coupler and a rubber spring. We are ranked as a distinguish Manufacturer, Exporter and Supplier of Vibrating Screen in India. Highlights : Reliable Durable Eccentric type system High screening capacity No transmission of screen panels Rigid and vibrating Available in : Single deck designDouble deck designThree deck designClient specification

Ganesh wedge wire has developed rotary screens complete with side flanges and support/drive drums of stainless still mainly for sugar and other chemical plants to achieve very efficient filtration. Our rotary screens have very strength coupled with very high open area and rigid construction. Rotary screen sizes from 1000mm to 5600mm long. Flow rates are depend on rotary screens area and size.

Screening is the most common device for grading material in different sizes as required. Some of the required grading goes out with the material of unrequited size the lesser proportion, the more efficient the screening. Screening efficiency is an indication of under size material going to oversize. There are various types of screen with separate requirement and functions like rotor screen, vibrating screen, vibrating circular screen etc.

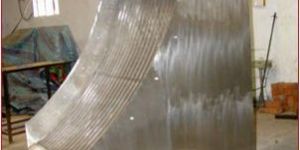

• DSM Screen: dsm screen

We take this opportunity to introduce ourselves jagtap engineerng works as a leading manufacturer and exporter of welded wedge wire screen filtration products. jagtap�s wedge wire screens can be successfully used in wide range of applications in the field of process engineering such as sugarcane juice filtration, waste water treatment, crude oil and natural gas production and vessel internal solving problems of solid/liquid and solid/gas separation, de-watering, sizing, filtration of oils, gases, paints, food products, water, fuels, liquid cooling agents, chemicals etc. jagtap�s wedge wire screens are available in flat panels, conical baskets, cylinders, tubes, sieve bend and also complete structures for salt, coal, sugar, food, mineral, waste processing, petrochemical and chemical industry. Welded wedge wire elements of our range includes basket, screen drums, sieve bends, candles, resign traps, support grids, laterals, under drain pipes and other custom-made wedge wire components.
