Weighing Controllers Dealers in Vadodara

Smart Load® Electronic Preset used to measure & deliver precise  quantities of Product in loading and retail applications. Features: Controls Single or blended product loading with  additives & Blends Direct interface with flowmeters, Safetyinterlocks,  card readers & automationsoftware Controls Digital Controlvalves, additiveinjector  blocks Can Control up to 4 products / blends and six  additives Temperature & Pressure compensations asper API,  IP or linear methods W&M approved for use in custody transferas per  OIML R117. PESO, IECEx , ATEX approved for use in Gr. IIA, IIB.

BATCH CONTROLLERS FLOW INDICATORS – Predefined Universal type MODEL 855 ( Microprocessor based & Fully Configurable ) Introduction Pantech Instrument’s Model 855V represents BATCH CONTROLLERS FLOW INDICATORS AND TOTALIZRS for flow applications where single flow signal is available. Model 855 is an ideal instrument for controlling amount of material flow in every batch. The input signal can be a currentvoltagelinear signal from a flow transmitter or pulses from turbine meters. It can also be UNIVERSAL input type, where user is allowed to select and configure the input signal. The analogue signal is square rooted if required, and similarly for digital pulses LitrePulses ratio ( i.e. K factor )can be adjusted to achieve precise measurement of flow and hence batching. The desired counts or the BATCH VALUE(S) are set through push button switches given in front of instrument. The relay(s) isare energised to start the flow and batch counter starts. When set batch counts are reached, relay(s) get de energised as per the batch-relay settings and the flow is stopped. The cycle repeats when start button is pressed again. The flow can be interrupted during the working cycle by pressing stop button and again started by pressing start.

• Size: 196x48x162 (1/4din)
• Temperature range: 0-1300°C
• Logical voltage: DC 0/5V
• Power output: DC 24V

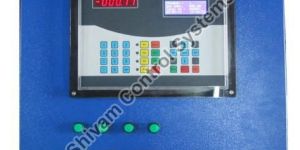

By keeping track of the market developments, we are engaged in offering Load Cell Controller. This controller is designed and developed utilizing latest technology and supreme quality components as per the set industry norms. To ensure its high quality and durability, we test this controller on different quality parameters. Our offered range is recognized for high performance, easy operation and durability.Features: Excellent performance Rigid construction Energy efficiency Specifications: Work power: AC 85-264V Other Details: Coarse feed, fine feed, dribble control Built in serial communications Dual display, gross and net simultaneously Complete material batching function Front panel entry of set points Set point saved during power down Discharge control provided Out of tolerance checking Batch report printout info Data setting through RS232/485 Automatic zero on power up possible Functions software programmable Digital software calibration Easy access rear plug connectors Higher A/D conversion rate Higher display resolution Integrated weight and set point controller

• Specifications: INDICATION 5 Digits with Auto Polarity. Red LED Display of 12.5mm charecter height.
• INDICATION: 5 Digits with Auto Polarity. Red LED Display of 12.5mm charecter height.
• INPUT Load cell compatible, 4 wire system.: INPUT
• Load cell compatible, 4 wire system.: LOAD CELL EXCITATION 10V DC.
• LOAD CELL EXCITATION: 10V DC.
• INDICATING ACCURACY ±0.05% of full scale.: INDICATING ACCURACY
• ±0.05% of full scale.: RESOLUTION 1 in 5000 Counts.
• RESOLUTION: 1 in 5000 Counts.
• ZERO & TARE Full Range Push Button Zero & Tare.: ZERO & TARE
• Full Range Push Button Zero & Tare.: No. OF SET POINTS Maximum six.
• No. OF SET POINTS: Maximum six.
• CONTROL SETTING Individually settable over full range by keyboard.: CONTROL SETTING
• Individually settable over full range by keyboard.: CONTROL OUTPUT 1 Changeover relay output. Contact rating 3Amps, 230V AC resistive load. Maximum 6 relays.
• CONTROL OUTPUT: 1 Changeover relay output. Contact rating 3Amps, 230V AC resistive load. Maximum 6 relays.
• PROGRAMME MEMORY    RETENTION Programme stored in RAM is protected by Battery back-up. Battery kept on charging when power is ON.: PROGRAMME MEMORY    RETENTION
• Programme stored in RAM is protected by Battery back-up. Battery kept on charging when power is ON.: AMBIENT 10°C to 50°C.
• AMBIENT: 10°C to 50°C.
• POWER SUPPLY 230VAC, 50HZ.: POWER SUPPLY
• 230VAC, 50HZ.: POWER CONSUMPTION 10VA.
• POWER CONSUMPTION: 10VA.
• SIZE 92mm (W) x 186mm (H) panel cutout having 280mm (D).: SIZE
• 92mm (W) x 186mm (H) panel cutout having 280mm (D).: RELAY OPERATION Each relay will operate as per the set point. Relay operations can be programmed with adjustable time delay through keyboard.
• RELAY OPERATION: Each relay will operate as per the set point. Relay operations can be programmed with adjustable time delay through keyboard.

Accepts Universal inputs 4-20 mA or 0-10 V or pulse(2 or 3 wire). Maximum 4 CO on Batch values generated. Liner or Square root input selections with 0.1% Accuracy.
