Ztech Control Systems Subhanpura, Vadodara, Gujarat

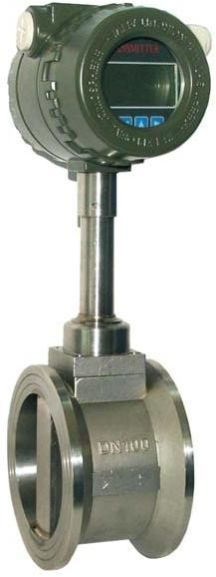

Ideal for accurate measurement of rate of flow of fluids, our Vortex Flow Meter is easy to install. Our company’s name figures in the list of prominent Manufacturers and Suppliers of Vortex Flow Meter in Gujarat, India. These Vortex Flow Meters are manufactured in accordance with international quality standards. To ensure that only defect free Vortex Flow Meter reaches the customer, we carry out stringent quality checks before the final dispatch.

Size : Multisizes

Type : Vortex Flow Meters

Material : Stainless Steel

Application : Industrial

Feature : Digital Water Meter Display

Voltage : 220V, 230V

Operating Temperature : 50-100D/C

Automatic Grade : Automatic, Fully Automatic

Display : Local

Warrenty : 1 Year

Country of Origin : India

Brand Name : ZTEK

Material : SS316

Accuracy : +/-0.5 TO 1%

Output : 4-20MADC,RS485 MODBUS

Optimizing cutting edge technology, we are engaged in manufacturing and supplying of a range of VAW meters. These meters are used for the indication of voltage, current and wattage in various instruments of power generation and other allied industries. Fabricated using best quality material, these are known for optimum & accurate functioning and long working life. Available in various specifications, these can also be custom made to suit the specific requirements of the clients.

Featuring state-of-the-art integrated circuits and electronic design, our Two Wire Temperature Transmitter are designed to fit inside many compact thermo well protection heads.  The company is a renowned Manufacturer and Supplier of Two Wire Temperature Transmitter in Gujarat. The Two Wire Temperature Transmitter offered has a diameter of only 45mm. Our Two Wire Temperature Transmitter converts mill volt input from thermocouples or resistance from RTD or potentiometer into 4 to 20 ma output.Details : A stable 4 to 20 ma output signal is produced proportional to the transmitter’s specific input type and calibrated temperature range. Adjustability of zero and span is provided to facilitate some range ability. The transmitted signal eliminates noise pickup, voltage drops and multiple cold junction errors, and it requires only a twisted pair of copper wires for loop connections. All models and ranges of these ultra-miniature transmitters are available with fully epoxy-potted electronics, which gives ultimate protection in extreme environmental conditions.    Specifications : thermocouple and rtd field selectable resistance input predefined miniature size fits in sensor protection head all parameter settingcalibration through communicator 4 to 20ma dc output at 500ohms loading capacity upscaledown scale field selectable Accuracy better than +-0.2 % of span Ambient temp. range : -10 to 50oc Supply voltage : 15 to 30vdc, 24vdc recommended max loop Dimensions : 45 d * 15mm h (15+10mm, height includes terminal strip) Weight : 100gms. approx

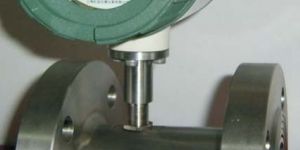

The modular design of our Turbine Flow Meter supports a variety of flow ranges. Our company shares glorious credentials with the renowned Manufacturers and Suppliers of Turbine Flow Meter in Gujarat, India. The Turbine Flow Meter is widely used for measuring the flow of water and other fluids. Manufactured in accordance with international quality standards, our Turbine Flow Meter is quality certified.

Country of Origin : India

Type : Turbine Flow Meter

Brand Name : ZTEK CONTROL SYSTEMS PVT LD

Material : Stainless Steel

Color : SILVER

Voltage : 220V

Operating Type : Automatic

Power : 24VDC Or 220VAC

Driven Type : Electric

Certificate : ISO 9001:2008 Certified

Display : Remote

Warrenty : 1 Year

Finishing : Chrome Finish

Corrosion Resistance : Yes

Shape : Rectangular

Phase : Single Phase

Usage : Industrial, Laboratory, Chemical Flow Measurement, Water And Chemicals, Hospital

Specialities : Digital Water Meter Display, Accuracy

Line Size : 4-20mm, 20-50mm, 50-100mm, 100-150mm

Packaging Type : Carton Box

Pressure : Low Pressure, Medium Pressure, High Pressure

Weight : 50-100kg

Repeatability : 1%

Accuracy : +/-0.5 TO 1%

Operating Temperature : 140 DEGC

Analog Output : 4-20madc

End Connections : thread or flange or T/C

Frequency : 50 hz

Thickness : 3 to 10 mm

PC/GSM/Printer connectivity with SCADA software makes our Universal Input Temperature Scanner one of its kinds. We are proficient Manufacturer and Supplier of Universal Input Temperature Scanner in Gujarat. The Universal Input Temperature Scanner offered has online test mode facility for each channel and no calibration is required for other input selection. Customers can purchase the Universal Input Temperature Scanner at industry leading rates.Details : Alarm output Hi/Lo, fail safe. All calibration /configuration can be done from front keys

We are offering Single Channel Universal Process Indicator. Ztech’s Digital Universal process indicator model ZT501 is designed to indicate process parameters like temperature, level, flow, pressure etc as per the process requirement for various applications. It can display the process value with the resolution of maximum 4 or 5 (optional) digits. The range is selectable from -1999 to 9999 scale with selectable decimal resolution. It can generate max four relay output (onoff) for various application with hilo selection. The hysterisis is programmable through out the range. It can generate analog output as retransmission & give computer connectivity port on Modbus protocol or GSM connectivity as an optional feature. They are very reliable, accurate employing the latest technology. They undergo stringent tests to assure quality performance. Features: Input : Universal Input (J K R S T Pt.100, mA,mV, V, Cu53, Special on demand) Display : 4 digit 12.5mm size super bright redgreen LED (5 digit 12.5mm size optionally) Output : max 4 relay contacts of 5Amp230Vac contact rating Transmitter Power : 24V30mAdc Analog Output : 4- 20mAdc opto & Galvanic isolated retransmission. Output Loading : Max 800 Ohms loading capacity Com port : RS232 RS485 Modbus RTU or GSM connctivity Accuracy : +-0.1% for linear & +-0.25% of span for non linear input Power : 110V 230V selectable or 90 to 260 VAC-DC & 24Vdc Ambient Temp: -10 to 55 degc. Humidity :

Ztech’s digit RS232 to RS485 converter is designed to offer a truly simple, cost effective digital pressure gauge to cover a wide range of applications from calibration laboratory to in-field use. It indicates pressure with different selectable units by user with the resolution of maximum 6 digits in battery operated version. It has auto power OFF function in battery operated model. It has other model in which it can be used as loop power indicator with 4- 20mAdc transmitter by giving 15 to 24Vdc external supply voltage. In this version it will give you resolution of four digits with selectable multiplying factor for different unit scales with red LED display. It is operated by high precision piezoresistive silicon sensor technology. It is available in two different applications for air, gases (dry) media other model is for air & liquid with SS316 diaphragm. Features: Accuracy: 0.05% FS 0.1%FS 0.2%FS Display Display: Monochrome LCD for battery power Red LED for external power supply. Units: PSI, Pa, mbar, bar, hPa, kPa, Mpa, Kgcm2, mmHg Operating & Compensated: 32°F to 122°F ( 0°C to 50°C) Storage: -40°F to 167°F ( -40°C to 75°C)6 Process Connection: 0.5” NP2T (M) standard, other on demand Diaphragm: 316L stainless steel. (for liquid application) Battery life: 2000hrs. Low battery Indicator: YES Output: 4- 20mAdc (in external power option) Output Loading: Max 600 Ohms loading capacity Com port: RS232 RS485 Modbus RTU or GSM connectivity Power: Battery or 24Vdc external Humidity:

We offer a range of high quality pressure transmitters that are used to measure liquid, gas or steam flow as well as liquid level, density and pressure in various industries. Designed using advanced technology, these are known for reliable readings, appropriate functions and high durability standards. Further, we also customize these transmitters to meet the specific application needs of our clients.

We are offering low cost differential pressure gauge. Features  mounts in industry standard holes   accuracy 2%   die cast aluminum housing  applications  filter status   duct static pressure   clean room pressure   building pressure   fan and blower pressure   paint booths   dust collectors   glove box pressure   bubbler systems   cabinet purging  specifications pressure limits: -20”hgto15psi(-0.677 bar to 1.034 bar); mp option: 35 psi (2.41 bar); hp option: 80 psi (5.52 bar) media compatibility: air and compatible gasses accuracy: +- 2% full scale (+- 3% on -0 and +- 4% on -00) throughout range at 70°f (21°c) temperature ranges: 20° to 140°f (-7° to 60°c) housing material: die cast aluminum case and bezel, with acrylic cover process connection: 18”femalenptduplicatehighandlow pressure taps –one pair side and one pair back. Weight: 1 lb 2 oz (510 g), mp & hp 2 lb 2 oz (963 g) accessories: two18”nptbarbedfitings,two18”npt plugs, and three mounting tabs and screws.

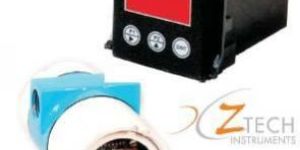

Based on advanced technology, our Loop Powered Indicators are one of its kinds. The company is an eminent Manufacturer and Supplier of Loop Powered Indicator in Gujarat. The calibration / configuration of the Loop Powered Indicator can be done from front keys itself. An enhanced feature of selecting the square root and linear display mode field is available on our Loop Powered Indicator. We make available the Powered Indicator in card, panel, weather proof and flame proof enclosures.Details : 4/20 mAd and 20/4 can be field configured Filter option for input signal variation is provided Lo cut-off signal provide

Designed using innovative technology, our Level Transmitter is quality tested and certified. We are successful Manufacturer and Supplier of Level Transmitter in Gujarat, India. These Level Transmitters are manufactured in accordance with international quality standards and norms. To ensure that only defect free Level Transmitter reaches the customer, we carry out strict quality checks before the final dispatch. Owing to our reliable sourcing network, we are capable of delivering bilk orders of the Transmitters.

Widely used for various wireless communication applications, our GSM / GPRS Modules have low current consumption. Our company’s name figures in the list of renowned Manufacturers and Suppliers of GSM / GPRS Module in Gujarat. These GSM / GPRS Module are designed as per industry laid standards and norms. The GSM / GPRS Module offered runs on 12 Vdc battery power, Customers can purchase the Module at pocket friendly rates.Details : Input : RS485/RS232 Modbus, 4-20 madc or pulse Output : GSM or GPRS as per requirement Power Mains or battery power Digital Output : 16 numbers Mounting : wall Enclosure : Sheet Metal MS or as per your requirement Application : Instrument to instrument connectivity or Instruments to SCADA software connectivity.

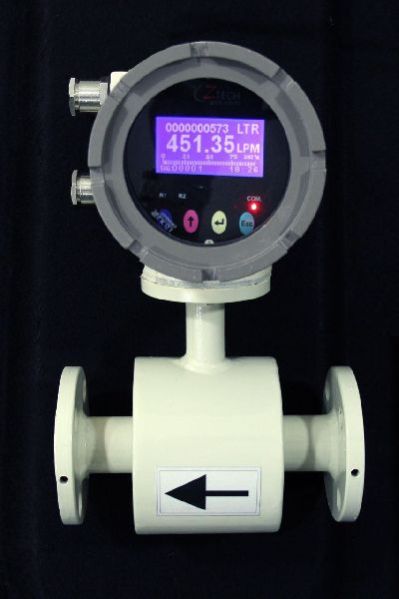

Ztech’s Electromagnetic flow meter model ZT803 is designed for flow measurement of conductive liquids with no moving parts and a PTFE lining. Electromagnetic flow meter is suitable for measurement of flow of conductive liquids, which is based on faradays law of Electromagnetic induction, according to which a voltage is induced in electrically conducting body moving in a magnetic field & this voltage is directly proportional to the velocity. Standard outputs include analog, frequency, RS232RS485 or GSM connectivity. Local-and remote-display models are available with weather proof & flame proof enclosure as an optional feature. They meet the most demanding requirements on high measurement precision, long-term stability and hygienic standard. Specifications • Flange Sizes: 150# ANSI: 19 to 305 mm (1” to 12”) • Maximum Pressure: 10 kgcm2 • Minimum Conductivity: 10 uS • Output 4-20mAdc or Modbus RTU • Electrode Material: SS316, others optional • Environmental Temperature: -5 to 55 oC (23 to 131oF) • Graphical LCD, Velocity Display • Liquid Temperature: 0 to 150oC (32 to 302oF) • Accuracy:+-1% of span. • Range: 0.3 to 10 ms • Frequency: 0 to 1000 Hz with galvanic isolation • Protection: IP67

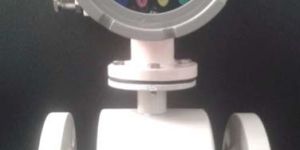

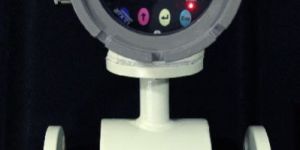

Our Electromagnetic Flow Meter is designed for flow measurement of conductive liquids with no moving parts and a PTFE lining. We are an unsurpassed Manufacturer and Supplier of Electromagnetic Flow Meter in Gujarat. The Electromagnetic Flow Meter offered is suitable for measurement of flow of conductive liquids, which is based on Faraday's law of Electromagnetic induction. Local-and remote-display models are also made available with weather proof and flame proof enclosures. Details : Standard outputs include analog, frequency, RS232RS485 or GSM connectivity   Specifications : Flange Sizes : 150# ANSI: 19 to 305 mm (1” to 12”) Maximum Pressure : 10 kgcm2 Minimum Conductivity : 10 uS Output : 4-20mAdc or Modbus RTU Electrode Material : SS316, others optional Environmental Temperature : -5 to 55oC (23 to 131oF) Liquid Temperature : 0 to 150oC (32 to 302oF) Accuracy : +-1% from 5 to 100% Range : 0.3 to 10 ms Frequency : 0 to 1000 Hz with galvanic isolation Protection : IP67

Weight : 50-100kg

Packaging Type : Carton Box, Wooden Box

Pressure : Low Pressure, Medium Pressure, High Pressure

Usage : Industrial, Chemical Flow Measurement, Water And Chemicals, Hospital

Line Size : 15 mm to 400 mm

Specialities : Lorawan Compatible, Digital Water Meter Display, Accuracy

Type : Electro Magnetic Flow Meter

Brand Name : ZTEK

Material : Stainless Steel

Finishing : Powder Coated

Power : 12 To 24 VDC Or VAC

Driven Type : Electric

Phase : Single Phase

Country of Origin : India

Display : remote and local display

Warrenty : 1 Year

Corrosion Resistance : Yes

Operating Type : Automatic

Operating Temperature : 150 degc max

Analog Output : 4-20madc

End Connections : flange, Thread , triclover

Ztech’s electromagnetic flow meter model zt803 is designed for flow measurement of conductive liquids with no moving parts and a ptfe lining. electromagnetic flow meter is suitable for measurement of flow of conductive liquids, which is based on faradays law of electromagnetic induction, according to which a voltage is induced in electrically conducting body moving in a magnetic field & this voltage is directly proportional to the velocity. Standard outputs include analog, frequency, rs232rs485 or gsm connectivity. Local-and remote-display models are available with weather proof & flame proof enclosure as an optional feature. They meet the most demanding requirements on high measurement precision, long-term stability and hygienic standard. Specifications • flange sizes: 150# ansi: 19 to 305 mm (1” to 12”) • maximum pressure: 10 kgcm2 • minimum conductivity: 10 us • output 4-20madc or modbus rtu • electrode material: ss316, others optional • environmental temperature: -5 to 55 oc (23 to 131of) • graphical lcd, velocity display • liquid temperature: 0 to 150oc (32 to 302of) • accuracy:+-1% of span. • range: 0.3 to 10 ms • frequency: 0 to 1000 hz with galvanic isolation • protection: ip67

Weight : 50-100kg

Packaging Type : Carton Box

Pressure : High Pressure

Usage : Industrial

Specialities : Digital Water Meter Display

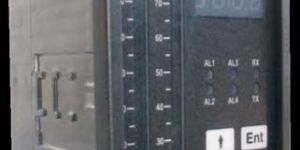

The Digital Dual Channel Bargraph Indicator features single / dual channel universal input. We are trusted Manufacturer and Supplier of Digital Dual Channel Bargraph Indicator in Gujarat. The Digital Dual Channel Bargraph Indicator offered has four relay outputs for each channel and software based linearization for thermocouple input. All the calibration data is stored in the memory with password protection for key in data. An additional feature of our Bargraph Indicator is the non volatile Ram for data restoring. Details : Analog retransmission output RS485 Modbus Connectivity Fully Configurable from front keys Square root extraction Compact design with 101 segment bar & 4 Digit display for each channel

We are offering difference indicator transmitter controller. Ztech�s digital universal input differential process indicator model zt514 is designed to indicate difference of two process parameters like temperature, level, flow, pressure etc as per the process requirement for various applications with computation of input 1 minus inputs 2. It can display the process value with the resolution of maximum 4 digits. The range is selectable from -1999 to 9999 scale with selectable decimal resolution for linear input signals. It can generate max four relay output (onoff on either of the inputs or on difference selectable) for various application with hilo selection. The hysteresis is programmable through out the range. It can generate analog output as retransmission on difference & either of the input signal & give computer connectivity port on modbus protocol or gsm connectivity as an optional feature. They are very reliable, accurate employing the latest technology. They undergo stringent tests to assure quality performance.

Our Ultrasonic Flow Meter features high accuracy +1% and repeatability +0.2%. We are reliable Manufacturer and Supplier of Ultrasonic Flow Meter in Gujarat. Clamp on hand held Ultrasonic Flow Meter is also made available by us. A standard interface with RS232 for data output and on-line operation is also provided by our Ultrasonic Flow Meter. The built-in Nickel-hydrogen battery supports 10 hours of uninterrupted operation. Customers can buy the Flow Meter at competitive rates.Details : Easy to install outside the pipe 4 Line display: instantaneous flow rate Accumulate flow Status Self-diagnose to show the current status
