Oscillating Granulator Dealers in Valsad

Stirer diameter : 8"(200mm) : 12"(300mm) Stirer motion : Oscillating type : Oscillating type Output : 200 Kgshr. (Output depends upon mesh size and material characteristic ) : 650 Kgshr. (Output depends upon mesh size and material characteristic)

• Output: Up to 200 Kg /Hour
• Oscillating Speed: 48 per minute

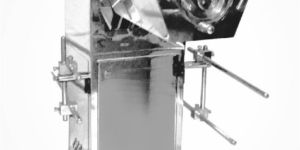

Ideal for gentle homogenization, size reduction, grading and sieving of dry, sensitive powders and granules in pharmaceutical, chemical and food industries.Oscillating Granulator has one rotor with five edges, which oscillate on horizontal axis. There is one half round sieve mounted at the bottom of the rotor. Product is charged from the top through in-feed hopper and material falls on the rotor blades. The particles are broken by a set of oscillating bars arranged in cylindrical form over a screen of suitable mesh. Due to the sharp edges on rotor, the downsizing of particle takes place and through sieve material gets pushed outward from the bottom opening. The oscillating motion of the rotor improves the granulating process. The important feature of the oscillating granulator is the continuous force and speed applied to the material. The back and forth motion of the rotor results in an even distribution of the material.

V. M. Industries is an india based manufacturer, supplier and exporter of oscillating granulator in india.
