Stranding Machine Dealers in Valsad

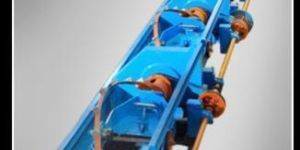

Jyoti Engineering works specialist in wire stranding machine both Heavy duty Rigid Fork / Cradle and Planetary Type. We deliver these machines in various configurations – 500mm / 630mm DIN Standard Bobbins with 19 / 37 / 54 / 61 / 91 Bobbins for Sector / Round / Compacted conductors and cores or we can manufacture stranding machine as per customer’s requirements. The offered range of wire machinery is made utilizing high grade raw material and highly advanced technology in complete adherence with the international quality norms.       MACHINE TYPE : Heavy duty Rigid Fork / Cradle and Planetary Type CAGES : 6, 12, 18, 24, 30, 36, 42 CONFIGURATION : 7/19/37/54/61/91 or as per customer’s requirement BOBBIN SIZE : 630mm / 500mm DIN Standard or as per customer’s requirement CAGE RPM : 60 to 275 rpm. BOBBIN HOLDING: Shaftless by Pintles – H Type CAGE DIRECTION :Clock wise, anti clockwise, opposite to each other & same direction by lever operated enclosed gear boxes or electrically by PLC and HMI. MACHINE BRAKE :All cage will have pneumatic operated disc brake with solenoid valve & air regulator. DIE HOLDER :Separate die holders (Heavy Duty) for individual cages adjustable type with hand wheel and split type easy operation with hinges. SECTOR SHAPING UNITS : Sector Shaping Heads are Provided in-front of Cages. The Heads are mounted on a single table along with die holder head. (Roller Size Dimensions as per requirement of client.) COUNTER METER : To measure the length by 1 mtr. Circumference counter wheel with Mechanical Counter as well as Electronics Counter through pulses from Digital Proximity Sensors. CAPSTAN : Ø 1000 mm to 3000 mm, 5 & 6 grooved dual capstan, Driven by Bull Gear and Pinion assembly and by suitable gear box. The Capstan wheels are mounted on heavy duty fabricated plumber blocks and suitable spherical roller bearings TRAVERSE: Trolley driven by square threded screw which is coupled with AC geared motor & driven by AC VFD to get infinite variable pitch. TAKE UP (Column / Portal Type) : Suitable to use 1600mm – 4500mm flange dia. Reels.
