Dyeing Jigger Machine Dealers in Vapi

• Sizes: 60", 66", 72", 84", 90" - 120"

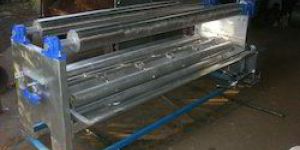

The frames are made of graded cast-iron rigidly connected by means of cast-iron tie bars.The drive to the main roll is given through differential gear box resulting in constant fabric speed.Each batching roll fitted with breaks shoe permitting adjustment of fabric tension within wide limit to suit heavy to light fabrc.Stainless steel through fabricated out of 304316 qty. 16swg. At the bottom two stainless steel guide rolls of 3"Ø mounted on hylum bearing. Provision for drain, overflow provided.Fitted above the through consisting of self balancing rocker with guide rolls of 3"Ø and ajustable pipe expanders to give stretched and creaseless passage of the fabric.3.H.P. 7.5 H.P. Standard electric motor fitted below the gear box. Drive by 'V' belts totally enclosed. Reverse forward starter with panel box. Starters provided on either side of the gear box.

• Voltage: 110-440 V
• Machine Type: Automatic
• Power Source: Electric
• Motor Power: 1-5 Hp
• Material: MS
• Minimum Order Quantity: 5000 Unit

• Color: White And Blue
• Material: Stainless Steel
• Capacity: 500KG - 1000KG
• Usage/Application: Dyeing, Bleaching, Scouring
• Machine Type: Automatic
• Orientation: Vertical

• Condition: New
• Machine Type: Automatic, Semi-Automatic, Manual
• Capacity: 150 KG TO 1250 KG
• Motor Power (HP): 2 HP TO 10 HP
• Model Number: ZIE 60 TO ZIE 140
• Speed Controller: PLC
• Material: STAINLESS STEEL
• Brand Name: ZEN

Gayatri Industrial Engineers is engaged in the manufacturing and exporting of high quality range of Jumbo Jigger Machine in India.
