Gayatri Industrial Engneers GIDC, Vapi, Gujarat

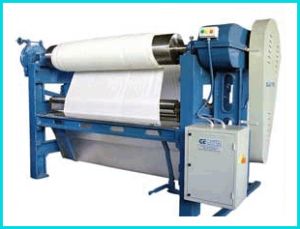

The frames are made of graded cast-iron rigidly connected by means of cast-iron tie bars.The drive to the main roll is given through differential gear box resulting in constant fabric speed.Each batching roll fitted with breaks shoe permitting adjustment of fabric tension within wide limit to suit heavy to light fabrc.Stainless steel through fabricated out of 304316 qty. 16swg. At the bottom two stainless steel guide rolls of 3"Ø mounted on hylum bearing. Provision for drain, overflow provided.Fitted above the through consisting of self balancing rocker with guide rolls of 3"Ø and ajustable pipe expanders to give stretched and creaseless passage of the fabric.3.H.P. 7.5 H.P. Standard electric motor fitted below the gear box. Drive by 'V' belts totally enclosed. Reverse forward starter with panel box. Starters provided on either side of the gear box.

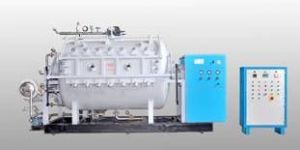

The new state of the art dyeing jiggers from GAYATRI offer all the advantages of customization using modern technology. Automatic temperature control, Cushioned start/ slow stop, finger tip tension adjustment, safely device for exhausting steam before the doors are opened, indirect trough heating (this prevents dilution of liquor) Liquor circulation is by means of a large filtering surface for better leveled dyeing, Selvedge shifting device is offered as standard on the fully-automatic version of 1000,500,300 & 75. Using PLC & Touch Screen Display GAYATRI provide many advanced features, some of which are as under. Special Features TEMPERATURE SPEED AUTO PENDULATION DOZING WATER FILLING SAMPLING POINT AUTO DRAINING AUTO BATCH REVERSING NUMBERS OF TURN

For dyeing width nylon, spandex, silk, polyester, flax blended fabric. Mainly for desizing, bleaching, scouring, dyeing of fabric of open width nylon, spandex, silk, cotton, polyester flax and blended fabrics. It can be widely used in the dyeing and printing industry to meet the requirement of small batches and different kinds suitable for processing fabrics at atmospheric temperatures up to 98°C and in HT execution up to 143°C. This Jigger is specially recommended for the treatment of crease sensitive permeable and non permeable articles in open width form offering optimum flexibility for the finishing all modern fibers and blends.

Mainly for desizing, bleaching, scouring, dyeing of fabric of open width nylon, spandex, silk, cotton, polyester flax and blended fabrics. It can be widely used in the dyeing and printing industry to meet the requirement of small batches and different kinds suitable for processing fabrics at atmospheric temperatures up to 98°C and in HT execution up to 143°C. This Jigger is specially recommended for the treatment of crease sensitive permeable and non permeable articles in open width form offering optimum flexibility for the finishing all modern fibers and blends.

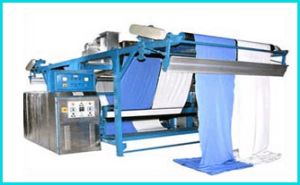

unique finish effects, controllable with optimum steaming, vacuuming and wrapper cloth pressure. suitable for polyester/wollen, polyester/cotton or viscose blends, from light fabrics likes sarees/shirtings to as heavy as corduroy suitings. gentle wrapper transport with a.c. Inverter drive for main cylinders and efficient drying system to achieve long wrapper life. time saving due to simultaneous loading and unloading of fabric. lower heat and energy consumptions cylinders: two main cylinders fabricated out of s.s. 316 stainless steel perforated plates mounted on ball bearings with specially designed gun metal nozzles for effective steaming and cooling operations driven by a.c. Electric motor. dryer cylinder: one stainless steel dryer cylinder provided at the bottom between the two main cylinders having proper heat controlling arrangement to dry the wrapper. pressure rolls: two hardchromed pressure rolls to press the fabric while feeding it to the main cylinders to ensure crease free entry of the fabric into the machine. Pneumatic cylinders are provided to adjust the pressure and tension of the fabric. vacuum pump: 5 h.p. Hydrovaccum system to save the power and water or 15 h.p. Water ring tye vaccumpump for colling the fabric. control panel: electrical control panel complete with synchronous timers, solenoid valves, pressure gauges, thermometers, push buttons, tele tell bulbs and other safety devices including auto/manual selection switches. plaiting down arrangement: plaiting down arrangement with geared motor on either side for piling the fabrics. drive : a.c inverter drive or hydraulic drive or chain drive will be provided

We hold expertise in offering premium quality Baby Felt Calender Machine to our customers. Our expert professionals manufacture these machines with utmost precision, keeping in mind the application requirements of the customers. These machines are also extensively used for the purpose of calendaring of different fabrics like pure cotton fabrics, blended fabrics and wool spinning. The Baby Felt Calender machines offered by us, are used for the after finish of embossing.
