Printing Machinery Dealers in Vapi

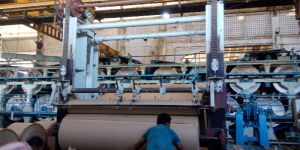

The Rewinder is designed for precision slitting and rewinding hub having high speed winding drums and quality materials for slitters. It is equipped with pneumatic brake and arrangement for control of tension. Principle : The rewinder machine consists of two main vertical frame, fabricated from MS plate with 2 CI ground finished slides bolted to it. A paper roll, a sizing roll with female knives and male knife fitting assembly are fitted to a common bracket, which is connected to balancing weight through chain, which is turn slide over the sideways provided on the main frame. A gear and pinion with one operating wheel is provided for lifting and lowering of sliding assembly. At the back side of the main frame, 2 nos. Har chrome coated dancing roll are given for getting uniform tension on the paper. At the front side 2 nos. Parallel drum rolls are provided. This drum rolls and the man frame are mounted on a common CI base. At one end of he front drum roll a V Pulley is provided for driving. The two drum rolls are inter connected through flat belts for synchronise the speed. Two separate CI stands with holding brackets are provided for mounting of the parent roll. One stand is provided with brake drum and brake shoes, which is operated by a Pneumatic Cylinder. At the end of the brake drum shaft, a mechanical hand operated clutch is given for engaging and disengaging the brake from parent roll shaft. The other stand is provided with two slides to attain forward, backward and sideways movements. A shaft is provided for fixings of core pipe for the winding of paper. All the rolls are supported on Roller/Ball bearing for smooth running. The rewinder is driven by variable speed drive unit through V belts. The female cutter roll can be provided with full length cutter knives. Features : The Rewinders are designed for precision slitting and rewinding job having high speed winding drums, maximum operating speed. Uniforms tight winding of Rolls. Clean & smooth surface of Roll. Easy separation of slit Roll. (Without using wedges) Easy and quick feeding of paper.

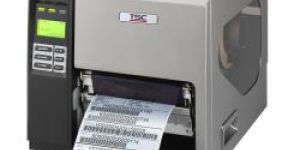

• Type: Thermal
• Brand Name: TSC
• Connectivity: USB
• Print Width: 108 mm (4.25
• Resolution: 8 dots/mm (203 DPI)
• Printing Method: Thermal Transfer & Direct Thermal
• Print Speed: 8 dots/mm (203 DPI)
• Print Length: 2,286 mm (90

We are recognized as one of the dependable Flexographic Printing Machine Manufacturers in India. Various national as well as international clients are placing bulk orders for the Flexo Label Printing Machine due to its efficiency in printing on Kraft Papers. Both the types of inks i.e. water based ink or solvent based ink, can be used. The Machine is loaded with all the advanced features resulting in enhanced productivity. Additionally, customers are eased with the availability of the Automatic Flexo Printing Machine that complies with the international quality standards. Use of the Product : This machine is used for high rate of production, enhanced efficiency & sharp printing on Kraft paper. It can print with either water based ink or solvent based ink. Specifications : Rolls : Consist of an anilox roll is usually chrome and is covered with tiny engraved cells. The roll of the anilox is to supply a fine film of ink to the printing plates .It is associated with the printing cylinders and is designed to transfer the printing ink to the surface of the printing plate. Rollers used in machine are hard chromed plated for an even & sharp impression for quality printing. All rollers made from heavy walled seamless steel pipe duly machined. Ink Tray : Ink tray is provided to store the ink as desired color for printing. Small jobs can be printed in double or triple ups Design : The machine is robust in design with fabricated body. Heavy side walls, feeding table topped with Formica sheet and provided with adjustable cam and for synchronizing Optimum output of 1200 (approx.) Kraft paper per hour with 2,3 & 5 HP A/C 1440RPM / 440V 3Phase electric motor respectively with suitable worm reduction gear box coupled with a tree stepped pulley to obtain speed of either 800 or 1000 or 1200 paper per hour Machine duly assembled and spray painted Print area in each size will be 2� less in length and width then the defined All moving parts are protected by safety guards Technical Features : The image is transferred through photo polymer stereos of 2.84 mm as well as 4.7mm thickness The photo polymer stereos to print at exact position of paper thereby eliminating judgment of operator Registration between colors to the extent of plus minus of minimum 1mm and maximum 3mm is possible Controlled ink transfer is a key factor in high quality flexo printing Easy set up leads to simple operation and maintenance Economical for small lot printing Draw rolls with registration setting arrangement to get print on exact position on all paper Hand brake provided to release the eccentric pressure to get the paper without printing if it is inserted wrongly

These are the features of the machine : Robust in construction Perfect slit material Surface rewinder / duplex rewinder Centre winder duplex Minimu down time

• Model No: ME240/ME340

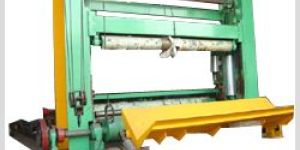

» The Rewinders are disigned for precision slitting and rewinding job having high speed winding drums, maximum operating speed is up to 600 MPM. » M. S. fabricated body with C. I. slides & complete slitting arrangement. Optionally we provide Heavy Duty complete FABRICATED. Body. » Pneumatically operated Rider Roll with complete slitting arrangement removing of wound Roll is done by pneumatically operated pusher Roll. » On unwind stand we will provide pneumatically operated Break Drum with cooling arrangements. » Uniforms tight winding of Rolls. » Clean & smooth surface of Roll. » Easy separation of slit Rolls. (without using wedges) » Easy and quick feeding of paper. » Rewinder is driven by D. C. / A. C. veriable speed drive. » For slitting arrangements we are provided pneumatially or manually loaded knives.

Screen printing inks from hubergroup are formulated for consistent print results on various substrate under the most demanding environment. hubergroup offers special range of screen inks for Graphics, Packaging, Electronics & Textile industries. The range comprises of conventional & UV curable system.

We are offering slitter rewinder machine, all types of rewinder slitter knives bracket.

dew drop printing machine, 3 bowl calender machine

Rubber Stereos, polymers block, ds tapes, hand cutting block

motor rewinding machine, Electrical Contractors, Maintenance Services

Nonwoven Bag Printing Machine, gravure printing cylinders

Doctoring Systems, carbon steel doctor blades, epoxy doctor blades

vials screen printing machine, ampoule screen printing machine

3D Printer, Alloy Steel Casting, die casting services, Aluminium Cast Alloy

Offset Printer, Offset Printing Services, digital offset press

flexo printing machines, liquid printing inks, Gravure Printing Machines

Digital Ink Jet Flatbed Printer

rubber stereo, Rubber Printing Block

eco solvent printers, Vinyl Printers, banner printers, FABRICATION

cap printing machine, Tube Filling Machine, Filling Machine, Conveyors

Flexographic Printing Machine, SS Plate Rolling Machine, Reel Stand

Rubber Stereos, Rubber Block, Printing Plates, Flexo Plates, white polymers

Semi Automatic Screen Printer

Round Screen, Bucket Elevator Pulley
