Relays Dealers in Vapi

• Type: Thermal Overload Relays
• Material: Aluminium
• Certification: CE Certified
• Voltage: 110V
• Frequency: 50Hz
• Application: Safety Use
• Weight: 100-200gm
• Operating Temperature: -25 +85deg C

Thermal overload relays are economic electro mechanical protection devices for the main circuit. They offer reliable protection for motors in the event of overload or phase failure. Starter combinations are setup together with block contactors and mini contactors.This leads to a release of the relay and a change of the contacts switching position.The thermal overload relays are three pole relays with bimetal tripping elements. The motor current flows through the bimetal tripping elements and heats them directly and indirectly. In case of an overload (over current), the bimetal elements bent as a result of the heating.

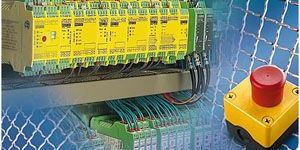

Phoenix Contact is setting new standards in safety technology. As one of the first safety products available on the market, PSR safety relay modules for process technology are now certified according to SIL 3IEC 61508. They are also approved in acc. with EN 50156-1 for continuous operation for Safety Level 3. Conventional safety relay modules often have a very high inrush current, which control systems detect as short circuits. PSR-ESP safety relays provide optimum switch on behavior and have two separate isolated redundant form A contacts and one form B contact with a width of 22.5 mm (0.886 in.), which can switch up to 250 V AC6 A. They are used to safely electrically isolate the field application from the control system or to adjust the voltage or power. The international standard IEC 61508 applies to electrical and electronic applications, in particular in process technology, such as chemical processing or process engineering and mechanical engineering. Like safety control systems or other control systems, compact safety relays are also an integral part of the safety chain. A new module with safe, slow-release contacts was incorporated in the PSR safety relay product family. Over a narrow 45 mm, the articles provide three enabling current paths and one signaling current path without delayed dropout for category 4 in acc. with EN 954-1. Furthermore, two slow-release enabling current paths – adjustable up to 300 seconds – are available. Single or two-channel control is possible. After the safety inputs have been enabled, the module starts automatically or manually.

• Material: ABS
• Input Voltage: 3 - 32V DC
• Output Voltage: 24 - 380 V
• Model Name/Number: SSR 40 DA
• Brand: Omron
• Rated Load Current: 40A
• Dielectric Strength: Over 2.5kVA / 1 min
• Operating Temperature Range: -20 DegreeC
• Length: 45.5 mm
• Width: 45.5 mm
• Height: 62.5 mm
• Weight: 24 gm
