Vibrating Screen Dealers in Vapi

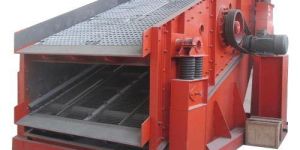

  Technical Specifications : The vibrating screen consists of a M.S. fabricated screening though with S.S. 304 screen plate or Nylon Screen plate having 3mm diameter holes. A shaft supported on two heavy duty bearings in a grease lubricated CI bearing housing is fitted to the centre of the screening trough. Two in-balanced weights are provided at both ends of the shaft for attaining vibration. The screening trough is freely carried on 4 nos. Coiled springs which rests on a M.S. fabricated bottom vat. The bottom vat is provided with adjustable partition for maintaining the level of the accepted pulp. A nozzle is provided on the bottom vat for the collection of accepted pulp. A shower pipe is also provided on the screening through for washing off good fibres which adhere to the rejects. The bottom vat is provided with hand holes for cleaning purpose. The Vibrating Screen is driven by a separately mounted electric motor by coupling directly to the screen through a flexible shaft.

• Color: Stainless Steel
• Country of Origin: Made in India
• Capacity: 300 Kgs/Hr - 1500 kgs/Hr.
• Body Material: S.S.304
• Motor Power: 1.1 Kw - 3.75 Kw.
• Brand: Industrial Fabricators
• Sand Washer Model Available: OPTIONAL

Owing to our expertise in this domain, we are indulged in offering a broad spectrum of vibrating screens.
