precision bearings pvt ltd East Pondy Road, villupuram, Tamil Nadu

ZNL Offerings: 511XX, 512XX, 513XX DLJT, DMJT, (Inch & mm) Also available in Steel and Brass cage.

Suitable for High stiffness application Carrying combined load Accommodating pure axial load or pure radial load Impact load carrying capacity Types of Taper Roller bearings: Single row tapper roller bearings (also with seal on one side) Paired single row tapper roller bearings Double row tapper roller bearings Four row tapper roller bearings

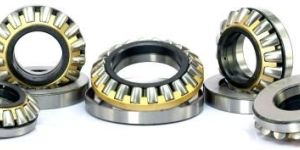

Suitable for In spherical roller thrust bearings the load is transmitted from one raceway to other at an angle to the bearing axis. The bearings are therefore suitable for the accommodation of radial loads. Another important characteristic of spherical roller thrust bearings is their self-aligning capability. This makes the bearings insensitive to shaft deflection and misalignment of the shaft relative to the housing.

ZNL Offerings: 202XX, 203XX, 213XX, 222XX, 223XX, 230XX, 231XX, 232XX 240XX and 241XX Available in cylindrical and taper bore Available in steel and brass cage

Suitable for: Low or medium speed application Carry radial load, but not suitable for axial loads. Accommodating misalignments

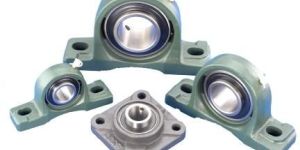

These bearings are combination of radial ball bearing, seal and housing of high-grade cast iron which conies in various shapes. The OD of the bearing and the internal surface of housing are spherical, because of this the unit is self-aligning. The radial load carrying capacity of this bearing is higher than that of the corresponding self-aligning ball bearing used for standard plummer blocks. Any misalignment of axis that arises from poor workmanship on the shaft or error in fitting will be properly adjusted.

Suitable for Constraint Space between housing and shaft Carry high radial load Low and Medium speed Drawn Cup Needle Roller Bearing Caged Type - HK SCE SCH, BK BCE BCH, HK..RS, HK..2RS, BK..RS Needle Roller Bearings With Ribs-NK,NKS, RNA49, RNA48, NKI, NKIS, NA49, NA48, RNA69, NA69, RNA49..RS, RNA49..2RS, NA49..RS, NA49..2RS Without Ribs-RNAO, NAO Inner Ring-IR, LR Full Complement -RNAV, NAV Aligning-RPNA, PNA

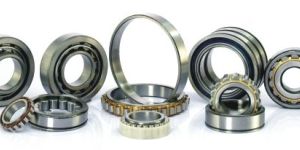

Znl offerings full compliment cylindrical roller bearing with snap ring grooves sl 182xxx sl 183xxx sl 192xxx sealed double row full compliment cylindrical roller bearing sl 0450xx.

This bearing contains solid outer ring, split inner ring and ball and cage assembly. Two-piece inner rings allow large complement of ball to accommodate. These bearings are not suitable for miss alignment in housing or shaft deflection. Also these bearings are not sealed.

ZNL Offerings: Single row deep groove ball bearings: 6800, 6900, 16000, 6000, 6200, 6300, 6400,62000, 62300,63000, 61800, 61900, 6200, 6300 - Also in EMQ [Electric Motor Quality] Double row deep groove ball bearings: 4200, 4300 with Z, 2Z shield and with Rubber seal RS, 2RS snap ring groove and snap ring For radial clearance C2, CN, C3, C4, C5 As per ISO grade P0 ABEC1 And as per ISO Grade P6A BEC3 Cage type riveted of steel and brass steel, machined brass cage, polyimide. Dimension as per ISO standard, DIN standard and ISI standard. RLS, RMS, XLJ Available

Suitable for Carry heavy radial load at high-speed application Compact space Carry axial displacement Non-bearing location installation Types of Cylindrical Roller Bearings: NU Design - Outer ring has two integral flanges, while inner ring had no flange. N Design - Inner ring has two integral flanges while outer ring has no flange. NJ Design - Outer ring has two integral flanges and inner ring has one integral flange. NUP Design - Outer ring has two integral flanges and inner ring had one integral flange & loose flange ring for both side axial locations

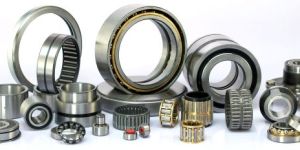

Clutch Release Bearings, Needle Roller Bearings, King Pin Bearings, DAC-Wheel Bearings and Gear Box Bearings are the main parts of automobile sector.

ZNL Offerings: Single row angular contact ball bearing: 7000, 7200, 7300, 7400 (Available in Steel, Brass & Polyamide Cages) Double row angular contact ball bearing 3200, 3300, 5200, 5300

We have ability and flexibility of designing and manufacturing customized bearings as per clientapplication requirement. Some of the bearings offered are Air Craft Bearings Slewing Ring Bearing Crossed Taper roller bearing Taper Roller Thrust bearing Needle Roller Thrust Bearing Cam Follower Large Deep Grove Ball Bearing
