Hydraulics And Lifting Aids One Town, Visakhapatnam, Andhra Pradesh

Product Description Recommended For : Highly abrasive material used in Sand Blasting applications including River Sand, Garnets, Copper Slag, Coal Particles, Corundum, Cast Steel Grit, Glass etc. Specially designed for superior performance – longer life due to very low tube wear. Tube : Excellent Abrasion Resistant, Anti-static, Modified NR, Black. Reinforcement : High tenasity synthetic yarn. * 3/4″, 1″ : Single yarn braid. * 1-1/4″, 1-1/2″: Double yarn braid2 braid of High-tenacity Synthetic Yarn. Cover : Excellent Abrasion Resistant, Modified NR, Black Temprature Range : -40′ C to  +75′ C

  J2AT TWO WIRE BRAID JACK HOSE   Recommended For : Hydraulic Jack applications. Meets Material Handling Institute specification IJ 100 for hydraulic hose and assemblies used with jacking systems. Tube: Black, oil resistant, synthetic rubber (Nitrile). Reinforcement : Two braids of high tensile steel wire. Cover: Black, oil and abrasion resistant, synthetic rubber (Modified Nitrile). Temperature Range : -40°C to + 49°C.

SUBMERSIBLE PUMPS & MOTORS SB Motori submersible single and 3 phase motors are specifically designed for immersion in oil to work with submersible screw pumps and meet the requirements of low noise level and high efficiency in hydraulic lifts. SEIM screw pumps are specifically designed for immersion in oil to work with hydraulic lifts and meet the requirements of low noise level, high efficiency and low pulsation with flow up to 900 l/m. SERVICE AND INSTALLATION TOOLS VALVE TROUBLESHOOTING KIT This kit provides parts commonly required during control valve service Contains: Valve Catalog, Troubleshooting Guide, USB Drive with Android phone cable, Wrench Kit and Valve Seal Kit – all neatly packaged in an easy to carry pouch for on-site work. CYLINDER LIFTING CLAMP These clamps are designed to lift and hold hydraulic cylinders safely during installation. Constructed of formed bar steel for light weight and easy handling. These clamps are fitted with shackles for lifting and tensioning bolts for applying pressure around cylinder tube. PORTABLE OIL FILTRATION SYSTEM Our portable oil filtration system is a self-contained unit designed primarily to filter hydraulic oil.  It can also be used as a transfer pump. The system is mounted on a heavy duty trolley with an oil collecting pan for easy mobility.  Plug the provided power cord into the 230V AC power supply, place the inlet and outlet pipes in the appropriate tanks, and open the ball valves, then switch on the power. Replacement filters are available. OIL TRANSMISSION LINE COMPONENTS These include: Hydraulic Hose with end fittings Hose Adaptors, Elbows and Tee Couplings Shut-off Valves Pipe Clamps required for efficient hose routing. Washers, O-Rings and Seals of various sizes.

  global g5k spiral wire hose – sae 100r13   product description recommended for : extremely high-pressure hydraulic applications. G5k is designed to meet all requirements of sae 100r13 specifications and performance requirements of en 856 4sh (-20, -24 and -32) and en 856 4sp (-10 and -12). 5/8″ to 2″ sizes are available in 121′ to 200′ continuous lengths. Recommended for use with gates gs couplings. tube : black, oil resistant synthetic rubber (neoprene). reinforcement : four layers of alternated spiraled, high tensile steel wire on -10, 12 and -16 sizes; six layers of alternated spiraled, high tensile steel wire on -20, 24, and -32 sizes. cover : black, oil resistant synthetic rubber (neoprene). Dual red stripe layline. temperature range : -40°c to +121°c. for water emulsions, etc.,

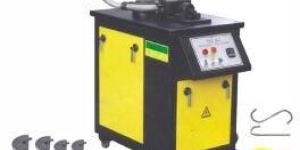

  MOTORISED PIPE BENDER – SPECIAL PURPOSE

Type : : VXMPB – SP (16-76mm)

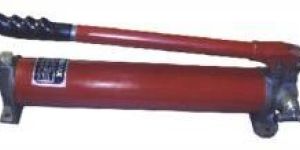

  HYDRAULIC HAND PUMP – SINGLE PLUNGER

Type : VXSOV – 700

Feature : Easy to install , Trouble free operation , Robust construction

Working Pressure : 7-32Mpa

The rupture valve R 10 can be mounted in any position directly onto the cylinder inlet connection Z. In the event of failure in the main cylinder line or where the down speed exceeds allowable limits, the R 10 valve closes, bringing the car to a smooth stop.

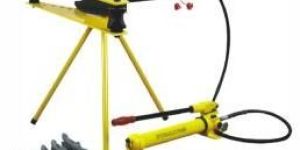

  HYDRAULIC PIPE BENDER – REMOTE CONTROL – TRIPOD MODEL

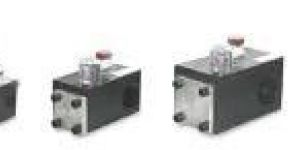

L10 (UCM – A3) PRESSURE LOCK VALVE The L10 Pressure Lock Valve is a solenoid operated check valve designed for hydraulic elevators and includes a self-closing manual lowering valve. Its purpose is to allow free flow of oil from the pump unit A to the cylinder B for upward travel and to prevent fl ow in the reverse direction from B to A until an electrical signal is given to the solenoid. Installed in the main cylinder line directly adjacent to the main elevator control valve, the L10 can be employed as a safety back up valve to the down system of the main control valve to prevent unwanted down movement of the elevator should an electrical or mechanical malfunction occur in the main control valve. Another application of the L10 is to reduce the amount of bounce in a hydraulic elevator system due to the compressibility factor of oil between the cylinder and the control valve, by mounting the L10 directly onto the cylinder connection. A Slack Rope Valve LK for roped elevators (e.g. 2:1 indirect transmission) is optional. It prevents the slack rope condition caused by the lowering of the ram when the car is suspended in the safeties or resting on the buffer.

Pressure : 0.15

Material : Brass, Plastic, Aluminum alloy

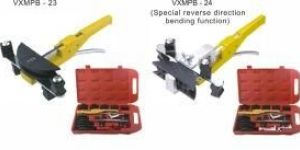

  PIPE BENDER – MECHANICAL

Type : Pipe Bender

Certification : ISO 9001:2008

Weight : 900-1000g, 300-400kg

Condition : New

Dispensing all types of Petrol & Diesel fuels for Service Station Pumps. Electrical conductivity : having two numbers braided copper flex wires laid spirally in opposite direction for electrical conductivity. TUBE : Specially compounded Nitrile Rubber. Black. Resistant to high Aromatic Gasoline. REINFORCEMENT : Two Braids of High Tenacity Synthetic Yarn. Copper wires ensure reliable conductivity. COVER : Modified Nitrile Rubber. Black. Temperature Range : -30°C to +49°C

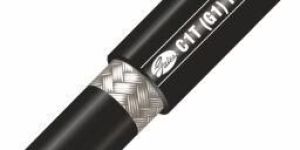

  ONE WIRE BRAID HOSE – SAE 100R1   Recommended For : Medium pressure hydraulic oil lines. Meets or exceeds the requirements of SAE 100R1 Type AT and performance requirements of DIN 20022 1SN / EN 853 1SN. Provides tighter than standard minimum bend radius and greater flexibility for easier plumbing. Suitable for use with non-skive ferrules. Tube : Oil-resistant synthetic rubber (Nitrile). Reinforcement : One braid of high-tensile steel wire. Cover : Oil and abrasion-resistant synthetic rubber (Modified Nitrile). Temperature Range : For Hydraulic Oil Lines -40°C to +100°C. For water emulsions, etc., see page 24.

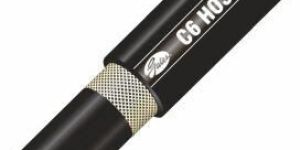

  ONE FIBER BRAID HOSE — SAE 100R6   Recommended For : Hydraulic oil lines, heavy-duty transmission oil, anti-freeze solutions. Meets or exceeds requirements of SAE 100R6 / EN 854. Tube : Specially compounded, oil-resistant, synthetic rubber (Nitrile). Reinforcement : One braid of high tenacity synthetic textile yarn. Cover : Oil and abrasion resistant synthetic rubber. (Modified Nitrile)-Black. Temperature Range : For Hydraulic Oil Lines -40°C to +100°C. For water emulsions, etc.,

Specialities : Rugged construction, Precise dimensions, Corrosion-resistance

  MOTORISED PIPE BENDER – SPECIAL PURPOSE- MULTI FUNCTION

Type : VXMPB – SP – MF (1½”-5/8”)

  MECHANICAL PIPE BENDER – MANUAL – FLOOR MODEL

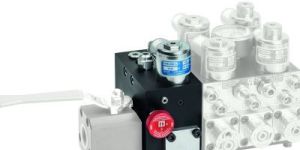

L20 (UCM – A3) PRESSURE LOCK VALVE The L20 Pressure Lock Valve is a solenoid operated check valve designed for hydraulic elevators and includes a self-closing manual lowering valve. Its purpose is to allow free flow of oil from the pump unit to the cylinder for upward travel and to prevent flow in the reverse direction from the cylinder to pump until an electrical signal is given to its solenoid. The L20 is to be directly mounted on a Blain EV ¾” valve at the cylinder port without the need of any adapters. It can be either used as a standalone safety valve by docking on an existing Blain EV valve with separate tank line (for modernizing old installations) or can be used as an integrated safety valve together with Blain’s EVL valve without the need of separate tank connection. Installed in the main cylinder line directly integrated with the main elevator control valve, the L20 can be employed as a safety back up valve to the down system of the main control valve to prevent unwanted down movement of the elevator should an electrical or mechanical malfunction occur in the main control valve (UCM case). A Slack Rope Valve LK for roped elevators (e.g. 2:1 indirect transmission) is optional. It prevents the slack rope condition caused by the lowering of the ram when the car is suspended in the safeties or resting on the buffers.

  HYDRAULIC REMOTE CONTROL JACKS – SCREWED RAM WITH SAFETY LOCK NUT

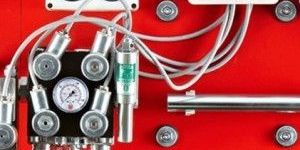

POWER UNITS Hydraulics & Lifting Aids provides hydraulic lift power units for any application; from small capacity home lifts to large cargo lifts.  We can manufacture power units based on your component requirements or can perform necessary detailed calculations based on your lift data to select and provide a power unit to meet your specified requirements. Power Units can be designed with Submersible Motors as well as Standard TEFC Motors.  Generally, our power units are supplied with: Tank with Oil Level Indicator and Filler/Breather Blain Elevator Valve Screw Pump Ball Valve and Hand Pump Optional Pre-Wired Junction Box OPTIONAL FEATURES Oil Cooler – necessary when the number of trips per day is above the maximum rated daily trip count, causing the oil to heat up beyond the heat dissipation rate of the system. Pressure Sensor Switch – DL switches are used to signal a drop in hydraulic pressure below the normal operating pressure. DH switches are used to signal hydraulic pressure above the normal operating pressure. Vibration Isolator Anchoring Kit – allows for securing the power unit to the machine room floor while isolating the unit from transferring noise and vibration through the building. Emergency Power Coil – Should there be an interruption of the main power to the elevator, the emergency lowering coil EN, fed by an emergency 12 V DC or 24 V DC supply, enables a command to be given from the car or elsewhere to lower the car to the floor below. Explosion Proof Solenoids – For use with equipment and protective systems, intended for use in potentially explosive atmospheres-directive 94/9 EG. EC-type-examination certificate-number: PTB 02 ATEX 2193 X. Compliant with EN 50014: 1997 and EN 50028: 1987. Pressure Compensated Down Flow Guide – recommended for use to maintain down speed within close limits when empty to full loading ratios of the elevator exceed 1:2.5. The CX is interchangeable with the standard flow guide and is selectable using the same chart. Micro Levelling Drive – The Blain Micro Drive for hydraulic elevators consists of a small motor, pump and valve unit in one assembly. Exact floor stops and relevelling operations are achieved with low electrical power requirement, low noise levels and no unnecessary heating of the oil. The MD unit is mounted on or under the cover of the main hydraulic power unit, using the same oil source. It can also be used to slowly move the car independently of the main drive during installation or in an emergency. QUALITY ASSURANCE Quality Control is an essential and integral part of our manufacturing process. Every phase of production is monitored to assure that each power unit is assembled in accordance with engineering and shop order specifications to meet our quality standards.  From the initial process of raw material, to the final process of placing the product on the truck, you can be assured that our quality standards are met and that the finished product meets your requirements. GENERAL DETAILS Tank Size required is based on space required for pump & motor assembly and amount of oil required for operation. The tank is constructed with a 3 mm steel body, a removable 5 mm steel lid and an additional inspection cover which can be removed to inspect the internal components during lift operation.  Power Units are designed to fit through a standard room door. Power Units are fitted with Blain control valves.  The valves are mounted on separate couplings making it extremely simple to remove the valve for maintenance, without the need to remove the lid. We recommend MAK Hydrol ISO VG 68 Hydraulic Oil.

  Also Available: VXPP-1000, Working Pressure 1000 bar ( One-way / Two-way  )
