Rectangular Muffle Furnace
We are offering rectangular muffle furnace.outer shell made out of thick mild steel duly finished in attractive stoving enamel paint. Fitted with grooved refractory for supporting the heating elements made out of kanthal wire and are easily replaceable. Maximum temp 1000°c with working temp. 940°c controlled by sunvic energy regulator. Complete with indicators, pyrometer, thermocouple – thermal fuse etc. Workable on 220v ac 50hz single phase. muffle sizes : 225x100x100mms (9”x4”x4”) 250x125x125mms(10”x5”x5”) optional(extra cost) digital temp. Indicator cum controller micro processor pid digital temperature indicator cum controller note: industrial muffle furnace temp range upto 1200 degree c also available.
...more
Profile Projector - (kw-850)
We are offering profile projector.a profile projector is an optical instrument that can be used for measuring. It is a useful item in a small parts machine shop or production line for the quality control inspection team. the projector magnifies the profile of the specimen, and displays this on the built-in projection screen. On this screen there is typically a grid that can be rotated 360 degrees so the x-y axis of the screen can be aligned with a straight edge of the machined part to examine or measure. having 300mm dia rotatable screen with vernier reading of 1 minute scale. Halogen bulb (12v 100w) with solid state variable light control built in transformer workable on 220v ac main. Stage x-y movement on ball bearing slides. Having micrometer (50mm dia) l.c.01 or 0.005mm fixed magnification 10x or 20x. Having transmitted light in card board box. optional accessories: graduated rotatable stage for angle measurement
...more
Profile Projector - (kw-800)
We are offering profile projector.a profile projector is an optical instrument that can be used for measuring. It is a useful item in a small parts machine shop or production line for the quality control inspection team. the projector magnifies the profile of the specimen, and displays this on the built-in projection screen. On this screen there is typically a grid that can be rotated 360 degrees so the x-y axis of the screen can be aligned with a straight edge of the machined part to examine or measure. having 200mm dia rotatable screen with vernier reading of 1 minute scale. Halogen bulb (12v 100w) with solid state variable light control built in transformer workable on 220v ac main. Stage x-y movement on ball bearing slides. Having micrometer (50mm dia) l.c.01 or 0.005mm fixed magnification 10x or 20x. Having transmitted light in card board box.
...more
Polishing Machine
We are offering polishing machine.this is a simple and convenient machine for rough and fine polishing of metallurgical specimen. This specimen after mounting and after being polished by hand on emery paper is polished on this machine. The specimen is held against a rotating flat disc, on which a polishing cloth, impregnated with suitable polishing media such as silicon carbide powder , alumina or diamond powder, is stretched. Disc polishing gives the specimen a scratch free mirror like finish. the disc polisher consists of a 20 cm balanced polishing disc mounted on a steel spindle. The spindle is located on heavy duty ball bearing. The disc is easily removable for quick changing of the polishing cloth or paper, which is fastened on the disc by mean of spring or rubber girdle on the rim of the disc. Around the disc is an aluminium drain jacket fitted with drain tube. the speed of the disc can be continuously varied from 450 to 1200 r.p.m. A metallic reservoir is also provided for dropping water on the specimen. The machine is electrically operated suitable for operation on 220 / 230 volts single phase . A . C . Supply. 1. Single disc (mmp-6a) 2. Double disc (mmp-7a) accessories : 1. Etching compounds for all metals 2. Diamond paste 3. Emery papers 4. Polishing media 5. Velvet cloth
...more
Pathological Microscopes

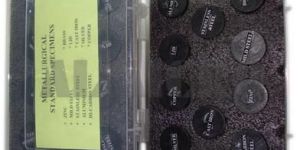

Metallurgical Microstructure Specimen Set
We are offering metallurgical microstructure specimen set.this set consists of different metallurgical structure specimen. Fully polished, prepared and etched. Name of each structure is given. Full set comes in plastic box. set of 10 set of 12 set of 24
...more

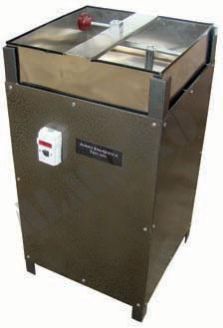

Jominy End Quench Apparatus - (mmp-9)
We are offering jominy end quench apparatus.this apparatus is used for determining the hardenability of steel by an experiment called quench test. This experiment will enable the student of know about the hardenability characteristics of different alloying element. 1. Mild steel model 2. Stainless steel modelthis apparatus is used for determining the hardenability of steel by an experiment called quench test. This experiment will enable the student of know about the hardenability characteristics of different alloying element. 1. Mild steel model 2. Stainless steel model
...more
Belt Grinder, Linisher - (mmp-9)
We are offering belt grinder, linisher etc.designed for initial rough grinding. Also the grinder provided has rigid construction and completely enclosed body which help in easy operations. These also have full cover mask in their base and dynamically well balanced rollers. specifications : working on 220v in single phase operation. manual belt -100/915 mm endless belt pulleys balanced pulleys polishing motor power ½ h.p single/single phase application areas : metallurgical laboratory forging industry fasteners industry casting industry iron & steel industry auto parts ancillaries
...more
Almicro Trinocular Metallurgical Microscope
We are offering almicro trinocular metallurgical microscope.mm-4 fitted with trinocular head assembled from hard coated prisms. Bright field horizontal illumination with centring provision, iris diaphragm and slots for dropping filters. Quadruple revolving nose piece, special graduated mechanical stage, variable light control transformer built in the large sturdy base, with plywood carrying cabinet. objectives m10x and m45x (sl) eye pieces wf 10x and 15x (paired) (a) complete as above with ‘a’ grade indian optics. (b) complete as above with all optics having imported lenses.
...more
Almicro Student Metallurgical Microscope
We are offering almicro student metallurgical microscope. Mm-1 monocular inclinable body having coarse and fine motion. Bright field horizontal illuminator with iris diaphragm and slots for dropping filter. Triple revolving nosepiece. Supplied with variable light control transformer and following optics in box. objectives : m10x and m45x (sl) eye piece : wf 10x and h 15x (a) complete as above with 'a' grade indian optics. (b) complete as above with all optics having impoted lenses.
...more
Almicro Inverted Metallurgical Microscope
We are offering almicro inverted metallurgical microscope.mm-5 a latest binocular inverted metallurgical microscope having co-axial coarse and fine motion assembled on ball bearing guides, equipped with horizontal illuminator with centring provision, field and aperture diaphragm and slots for dropping filters. Built in base variable solid state transformer. Large sturdy stage with x-y axis movements. Coarse and fine focusing knobs, supplied with two colored filters in metal mount, raxine cover, complete in box. objective m5x, m10x, m20x, m40x/45x eye pieces wf 10x (paired) (a) complete as above with all optics having impoted lenses. note : extra charges for trinocular head instead of binocular head.
...more
Almicro Inclined Metallurgical Microscope
We are offering almicro inclined metallurgical microscope. Mm-2 fitted with monocular observation tube inclined at 450. Bright field horizontal illuminator with centring provision, field and aperture diaphragm and slots for dropping filter, quadruple revolving nose piece. Special graduated mechanical stage, supplied with variable light control transformer and following optics in box. Objectives : m 10x and m45x (sl) eye piece : wf 10x and h 15x (a) complete as above with 'a' grade indian optics. (b) complete as above with all optics having impoted lenses.
...more
Almicro Binocular Metallurgical Microscope
We are offering almicro binocular metallurgical microscope. Mm-3 fitted with binocular head assembled from hard coated prisms. Bright field horizontal illuminator with centring provision, quadruple revolving nose piece, straight tube for photomicrography, special graduated mechanical stage, supplied with variable light control transformer and following optics in box. Objectives m10x and m45x (sl) eye pieces wf 10x and h 15x (paired) (a) complete as above with ‘a’ grade indian optics. (b) complete as above with all optics having impoted lenses.
...more
Abrasive Cut Off Machine
We are offering abrasive cut off machine.an abrasive cut-off machine with complete operation for precision cutting of copper, brass, steel, alloy steel or non-metallic materials in cross sections range. A thin abrasive wheel can be used and highly accurate cutting length can be achieved. specifications of our abrasive cut off machine are as follows: sturdy floor model cutter for sectioning metallography samples rust proof construction steel vise cut-off wheel coolant tank coolant recirculation recirculation pumps
...more
Tool Maker Microscope - (kw-900)
We are offering tool maker microscope.with x-y movement on ball bearing slides. Having micrometer (50mm dia) l.c. 0.01 or 0.005mm with goniometer. Fixed magnification 30x. Having both transmitted & incident light in wooden box. accessories for tool makers microscope depth measuring attachment centre holding device attachment v-block v-support measuring eye piece with reticles(each) i) graph ii) metric threads iii) concentric circles iv) cross v) 60° angle
...more
Metallographic Specimen Mounting Press - (mmp-10)
We are offering metallographic specimen mounting press.this machine is used for mounting the specimen in a bakelite powder and also to handle properly the specimen during polishing. The unit is of a rugged construction and is activated by a hydraulic press , with a pressure gauge to read the pressure being applied while mounting. The press is to be supplied complete with mould heater and thermostat with 25 mm dia mould assembly.
...more
Brinell Microscope - (mm-6)
We are offering Brinell Microscope.7mm Graticule Scale Magnification : 30x Field of view : 9Mm Measuring Accuracy : 2-3 microns.
...more
Specimen Leveller - (mmp-11)
We are offering specimen leveller.the press has unique wedge design helps specimen clamping, perfectly parallel to the grinding disc ensures uniform lapping/grinding. The press method for ensuring that the metal surface is exactly perpendicular to the optical axis of the microscope.
...more
