High Voltage Circuit Breaker Dealers in Yamunanagar

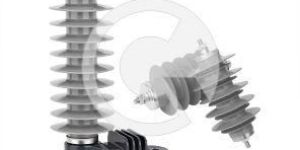

Compaq Polymer Surge Arrestors are manufactured to offer optimum protection to distribution equipment such as transformers and similar assets against the damaging lightning effects and similar operational conditions. These arrestors perform their task with high-end improvement and fidelity towards surge switching and medium voltage networks. Maintenance of service safety for both underground and overheard setups is offered without any trouble on exposure in the outdoors for long durations. Going through precision tests have made Compaq arrestors more durable & reliable.

• Rated Voltage: 12 kV

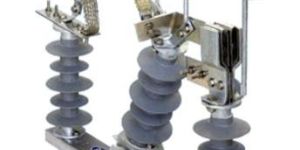

Air Break Switches (ABS) are widely installed throughout distribution networks for use as both isolation or switching points. Air Break Switches are installed in either horizontal or vertical (Pole Top or Mid Pole) Configurations. The precision engineered polymeric Air Break switches are available in different forms such as Gang Operated switch, single break, tilting type, vertical mounting that comprises hot dip galvanized channel iron base. Designed and tested in accordance to IEC 62271.102. Compaq manufactures Air Break Switches ranging from 1224kV up to 36kV Voltage ratings with current ratings of 400 up to 1250 amps. Compaq manufactures both side break and vertical break switches and within this range produces a number of different versions to suit individual customer needs.

Designed as per Indian & International Standards the Air Break switches are type tested at CPRI & ERDA. The precision engineered polymeric Air Break switches are available in different forms such as Gang Operated switch, single break, tilting type, vertical mounting that comprises hot dip galvanized channel iron base having 3 Nos. 11 33 kV. The gang operated and outdoor type are applied to isolate the Transformer, Overhead lines, System or Cables from distribution network.

• PARAMETERS: SYSTEM VOLTAGE , HEIGHT SYSTEM VOLTAGE
• 11 kV: 11kV(r.m.s) , 12kV(r.m.s)
• 22 kV: 22kV(r.m.s) , 24kV(r.m.s)
• 33 kV: 33kV(r.m.s) , 36kV(r.m.s)

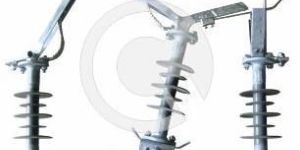

The Polymer Air Break Switch is gang operated and outdoor Type. The main Application of this product is to isolate the Transformer, Overhead lines, System or Cables from distribution network.

• System Application Voltage: 0.5-33 kV
• Rated discharge Voltage: 0.5-33 kV
• Rated Discharge Current: 5 kA, 10 kA
• Line Discharge Class: I, II, III
• High Current Withstand: 65-100 kA
• Applicable Design & Standard: IEC 60099-4, IS 3070 (Part III)
• Arrester Type: Distribution Type, Station Type
• Arrester Technology: Metal Oxide Gapless

Compaq Polymer Surge Arrestors are manufactured to offer optimum protection to distribution equipment such as transformers and similar assets against the damaging lightning effects and similar operational conditions. These arrestors perform their task with high-end improvement and fidelity towards surge switching and medium voltage networks. Maintenance of service safety for both underground and overheard setups is offered without any trouble on exposure in the outdoors for long durations. Going through precision tests have made Compaq arrestors more durable & reliable.   Salient Features Direct moulded housing to prevent moisture ingress. Low residual voltages. Excellent cantilever performance. Hydrophobic Silicone Housing. Maintenance free. Quality Design and Manufacturing meeting International Standards.
