Peeling Machine Dealers in Yamunanagar

We are a quality driven firm ad thus make sure that the material used for manufacturing complies with high quality standards. As a result of which, the finished products have long service life. We ensure that the packing of the products remain intact and there will be zero damage while handling, warehousing and transit. For this, we make use of high quality packaging material. Features : Very Heavy Duty Construction High Speed Technology Easy to Operate and use Friendly Uses Back up Rolls Friendly Uses Back up Rolls System Fully Electrical Control Panel Uses Hydraulic and Pneumatic Functions Full Bearings. Checking by Screw 1'pe Motorized Spindle. Specially designed For Peeling Medium & Super Small diameter logs Extra Veneer Recovery Utility Unique design to suit core yeneer production line. Suitable For Tropical and Plantation Wood Species. Technical Specifications : Elephant Lug Feeling Machine Knife Length Stock  -  1500 mm Swing dia (Max. Log Diameter)  -  800 mm Dill. Veneer Thickness  -  0.75mm-3.5mm Min. Bleek Length to be peeled  -  950 mm Min. end core diameter  -  45mm Max. Spindle revelation -  250 Total Power Required  -  45 HP

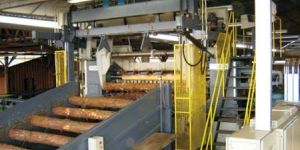

We are offering hydraulic pneumatic peeling machine. Ms bodyheavy duty knife holders and pressure barc.i casting heavy duty.all shafts are e.n material fitted with bearings.componentgear box, air compressor, grippers, power packswing dia (10 – 16 ft.)1500 mmspindle rpm150 rpmminimum core dia 70 mmpower 75 h.pknife length2750 mmveneer thickness0.25 mm – 3.50 mm.

• Type: Peeling Machine
• Weight: 1000-2000kg
• Color: Black, Brown, Green
• Voltage: 380V
• Condition: New
• Automatic Grade: Semi Automatic

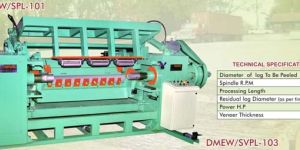

Located in Yamunanagar, Haryana, India, we are a reputed Manufacturer, Exporter and Supplier of Log Peeling Machine (DMEW-RVHPL-1001). Our Log Peeling Machine (DMEW-RVHPL-1001) is fabricated using the latest technology, under the supervision of our experts. Known for high performance, low maintenance, corrosion resistance and longer service life, our Log Peeling Machine (DMEW-RVHPL-1001) is widely demanded. Talk of price; we are known for providing the best quality at rock bottom price.

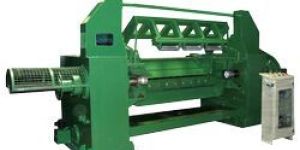

Our Rotary Log Peeling Machine is available in different varieties such as Hydro Pneumatic Machine, Hydro Spindle Pneumatic Machine, and others. These products have been designed with special focus on working length and diameter. It is easy to control. Working speed and net weight of Rotary Log Peeling Machine depends upon the model. Our log peeler is also suitable for curved wood and can even process thin wood of really small diameters.   Product Key Features Easily strips layer without clamper Automatic control Thickness is adjustable High load setting Special roller treatment Facilitate double speed cutting PLUS POINT: A. Ball bearing feed screw for 20 times more life than gun metel nut. B. Main spindle drive with hydraulic system, there are no thread in screw and no nut and no chain sprocket for spindle drive C. All gears are tempered and gried for accurate thickness of core. D. In this model maint5ained is Zero. Technical Specification of this Model Body of Machine : Febricalled from 20mm sheet Strucher : Machine is fix on the 7 channel Frame Feed Screw : Made from Special Alloy Steeland Ball Bearing Nut Spindle : Spindle 110m.m. DIA made fron special steel fitle 4d with Hydraulic Cylinder Transmission : Through form line chain sprockets. Hydraulic Cylinder : 75M.M.X300M.M Filled with Germany Spares Pressure Bar Cylinder : 80M.M.X100M.M. JANATIC Company Clutch Cylinder : 75M.M.X50M.M. JANATIC Company There is no gear box. There is AC drive system. (PLC Optional) Main Motor : 30 H.P.1400RPM Compressor Motors : 30 H.P.1400RPM Power Pack : Filled with POLYHYDRON VALVES & 5H.P. Motor Electrical Panel : Filled with L & T or ABB Switches. Auto Lubrication : 0.25 H.P. SIMRAN Company Pump. Brake : Important Disc Brake. Can Peel : 0.6M.M. to 3M.M Weight : 7 M.T. Pneumatic Fitting : JANATIC Company Hydraulic Fitting : POLYHYDRON Company Gripper : Fix Type Gripper for smaller Log.

We hold expertise in bringing forth the technologically advanced Hydraulic Peeling Lathe Machine. The Hydraulic Peeling Lathe Machine that we provide is fabricated from high-quality parts and components. Our B.H.I. Heavy-Duty Hydraulic Peeling Lathe Machine (Fully Automatic) comes with Electrical Motor Panels, Power Pack, Air Compressor, Cutting Off, and Veneer Clipper & Choppers. The Hydraulic Peeling Lathe Machines can be acquired in different models from us. We are a renowned name as Hydraulic Peeling Lathe Machine Manufacturer, Exporter and Supplier in Haryana, India.

• Motors: 5 hp + 1 hp
• Water pump: 1 hp/ 0.5 hp
• Gear box: Heavy Duty
• M.S. body: Fully covered
• Stone Rotor: Cast Iron Heavy Duty
• Electrical panel: With limit switches

knife grinder machine are widely used in the all kind of plywood (panel), veneer making and woodworking companies for grinding, re-grinding (sharpening) the log peeling machine’s knives (blades) or veneer lathe machine’s knife. There are 56” (1422mm), 72” (1830mm), 96” (2450mm), 108” (2750mm) grinding machines model and other size models according to our customer’s requirement. Machine’s construction extra heavy duty m.s. Fabricated body & body is completely covered. This machine has vibration less, so during operation performs leading finishing working. the slide of the machine is made from cast iron for smooth running. Heavy duty pressure valve is made from cast iron to holding the knife (blades) for leading working and fine quality sharpening of the knives. In this machine has a heavy duty cast iron stone rotor for holding the stone pieces to fine grinding. In knife grinder machine has water lifting pump that is used for providing cooling and preventing heat, because during the time of knife grinding operation heat is created between knives and grinding stone. The machine is fitted with leading quality branded electrical panel and electric motors. we have manufacturing this machine with the using of advanced discovered technology on the scientific way with leading services and technical support forever.   machine’s features:    heavy duty m.s. Fabricated body  smoothly running  accurate grinding  vibration less  easy to operate and used friendly  heavy duty cooling pump  clamping system  markete competitive price  low friction b/w slide ways ensuring long life  low maintenance  leading quality  leading services models are available sec-pkgm 56″(1422mm), sec-pkgm 72″(1830mm), sec-pkgm 96″(2450mm), sec-pkgm 108″(2750mm) and other our customer’s requirement.

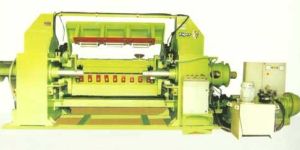

We are a leading Manufacturer, Exporter, and Supplier of Hydraulic Log Peeling Machine. The Hydraulic Log Peeling Machine are hydraulically controlled and equipped a back-up roll system for high quality veneer and cost effectiveness. The Hydraulic Log Peeling Machine has the provision for automatic lubrication to all the moving parts and comes with a Knife carriage, which is very rigid and prevents any sort of bending or vibration. Features Fully automaticSafe operationHigh quality veneerEconomical

• Material: Iron
• Usage/Application: Industrial
• Warranty: 1 Year

• Weight: 890 Kg
• Power: 4 Kw
• Material: MS
• Voltage: 240 V
• Warranty: 1 Year
• Country of Origin: Made in India
• Capacity: 200 Log Per Hour
• Brand: Yamuna

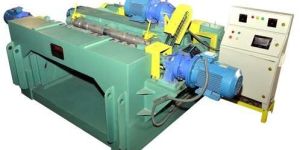

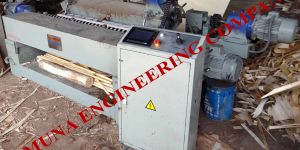

Our Spindleless Log Peeling Machine is available in different varieties such as Hydro Pneumatic Machine, Hydro Spindle Pneumatic Machine, and others. These products have been designed with special focus on working length and diameter. It is easy to control. Working speed and net weight of Rotary Log Peeling Machine depends upon the model. Our log peeler is also suitable for curved wood and can even process thin wood of really small diameters..

We offer our clients an excellent range of Hydraulic Log Peeling Machine, which is widely accepted among our clients. This equipment is highly effective and long lasting. Moreover, we also offer our esteemed customers a customization facility to meet their specific requirements. These hydraulic log peeling machines are obtainable at most attractive prices. Features : Heavy Duty ConstructionHigh Speed TechnologyEasy to operate and use friendlyFully Electrical control panelUses Back-up Roll SystemUses Hydraulic and Pneumatic functionsChucking by Screw Type Motorized SpindleSpecially designed for peeling medium & super small diameter logsExtra Veneer Recovery UtilityUnique design to suit Core Veneer production LineSuitable for Tropical and Plantation Wood Species Available In : ShapesDimensions

• Weight: 7 Tonne
• Model: K.I.I.-1400
• Max. Length of Log: 1400
• Min. Length of Log: 800
• Max. Peelable Dia: 1000
• Diameter of Spindle: 110
• Min. Core Dia: 40 mm
• Max. R.p.m. of spindle: 250
• Thickness: 0.5mm-3.2mm
• Motors Total Power Required: 51hp

• Features: Automatic control, Thickness is adjustable, High load setting, Special roller treatment
